SaliencyCageWinding
Rotor cage with saliency in d- and q-axis
Library
Modelica/Magnetic/FundamentalWave/BasicMachines/Components
Description
The salient cage model is a two axis model with two phases. The electromagnetic coupling therefore is also two phase coupling model. The angles of the two orientations are 0 and
. This way an asymmetrical rotor cage with different resistances and stray inductances in d- and q-axis can be modeled.
See also
SinglePhaseWinding,SymmetricMultiPhaseWinding,SymmetricMultiPhaseCageWindingRotorSaliencyAirGap

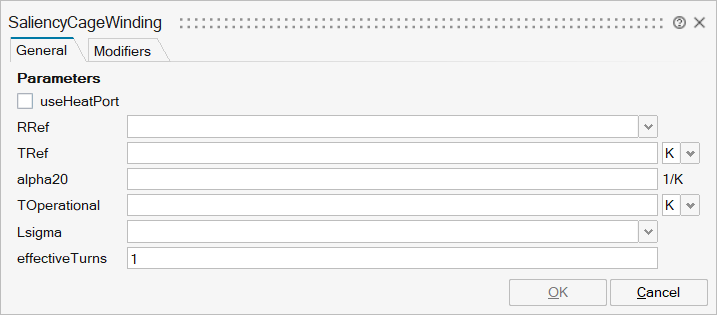

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useHeatPort | useHeatPort | Enable / disable (=fixed temperatures) thermal port | Number | 0 |
mo_RRef | RRef | Salient cage resistance | FromModelica('Modelica.Magnetic.FundamentalWave.Types.SalientResistance') | |
mo_TRef | TRef | Reference temperature of winding | Scalar | |
mo_alpha20 | alpha20 | Temperature coefficient of winding at 20 degC | Scalar | |
mo_alphaRef | alphaRef | Scalar | ||
mo_TOperational | TOperational | Operational temperature of winding | Scalar | |
mo_Lsigma | Lsigma | Salient cage stray inductance | FromModelica('Modelica.Magnetic.FundamentalWave.Types.SalientInductance') | |
mo_effectiveTurns | effectiveTurns | Effective number of turns | Scalar |

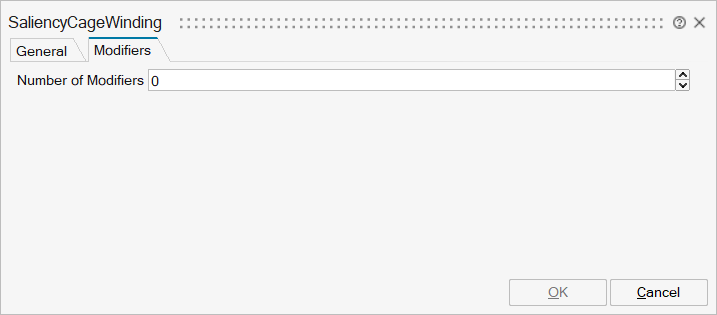

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'abs_V_m' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive magnetic port of fundamental wave machines | input | 1 |
port_n | implicit | Negative magnetic port of fundamental wave machines | output | 1 |
Port 3 | implicit | Heat ports of winding resistor | input | mo_useHeatPort |
