QuarterCylinder
Leakage flux from one edge to the opposite plane through a quarter cylinder
Library
Modelica/Magnetic/FluxTubes/Shapes/Leakage
Description
Please refer to the enclosing sub-package Leakage for a description of all elements of this package and to [Ro41] for derivation and/or coefficients of the equation for permeance G_m.

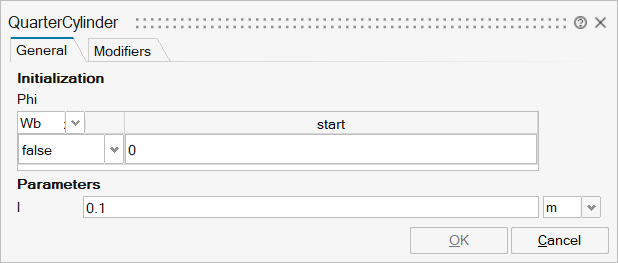

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Phi | Phi | Phi | Structure | |
mo_Phi/fixed | fixed | Cell of scalars | true | |
mo_Phi/start | start | Cell of scalars | ||
mo_l | l | Axial length orthogonal to flux (=2*pi*r for cylindrical pole and r>>distance between edge and plane) | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

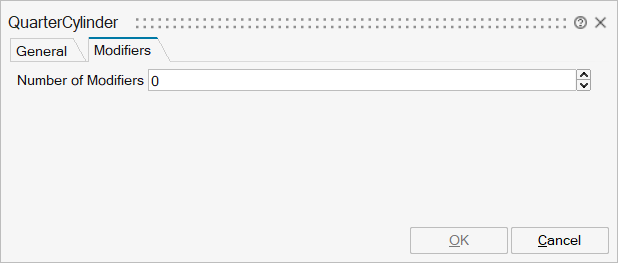

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'V_m' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive magnetic port | input | 1 |
port_n | implicit | Negative magnetic port | output | 1 |
