GenericHystTellinenSoft

Generic flux tube with soft magnetic hysteresis based on the Tellinen model and simple tanh()-functions

    GenericHystTellinenSoft

Library

Modelica/Magnetic/FluxTubes/Shapes/HysteresisAndMagnets

Description

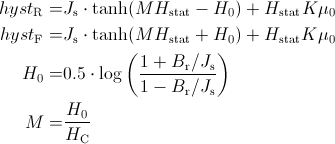

Flux tube element for modeling soft magnetic materials with ferromagnetic and dynamic hysteresis (eddy currents). The ferromagnetic hysteresis behavior is defined by the Tellinen hysteresis model. The shape of the limiting hysteresis loop (see Fig. 1) is described by simple hyperbolic tangent functions with 4 parameters. Therefore, the hysteresis shape variety is limited but the parameterization of the model is very simple and the model is relatively fast and robust. The rising (hystR) and falling (hystF) branches of the limiting hysteresis loop are defined by the following equations.

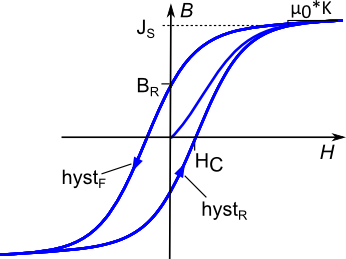

Fig. 1: Hyperbolic tangent functions define the shape of the ferromagnetic (static) hysteresis


An overview over of available hysteresis and permanent magnet elements of the package HysteresisAndMagnets can be found in UsersGuide.Hysteresis.

Parameters

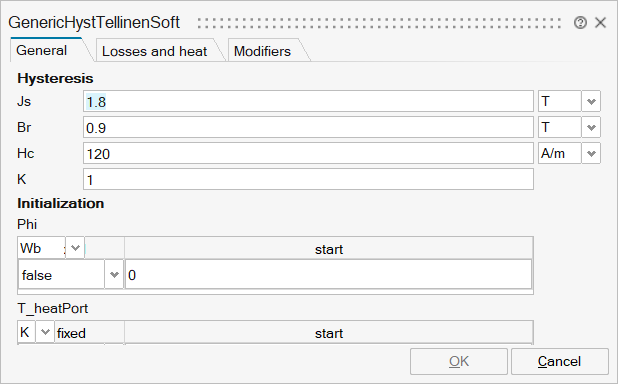

GenericHystTellinenSoft_0

NameLabelDescriptionData TypeValid Values

mo_Js

Js

Saturation polarization

Scalar

mo_Br

Br

Remanence

Scalar

mo_Hc

Hc

Coercitivity

Scalar

mo_K

K

mu_0 multiplier

Scalar

mo_Phi

Phi

Phi

Structure

mo_Phi/fixed

fixed

Cell of scalars

true
false

mo_Phi/start

start

Cell of scalars

mo_T_heatPort

T_heatPort

T_heatPort

Structure

mo_T_heatPort/fixed

fixed

Cell of scalars

true
false

mo_T_heatPort/start

start

Cell of scalars

mo_H

H

H

Structure

mo_H/fixed

fixed

Cell of scalars

true
false

mo_H/start

start

Cell of scalars

mo_MagRel

MagRel

MagRel

Structure

mo_MagRel/fixed

fixed

Cell of scalars

true
false

mo_MagRel/start

start

Cell of scalars

mo_derHstat

derHstat

derHstat

Structure

mo_derHstat/fixed

fixed

Cell of scalars

true
false

mo_derHstat/start

start

Cell of scalars

mo_asc

asc

asc

Structure

mo_asc/fixed

fixed

Cell of scalars

true
false

mo_asc/start

start

Cell of scalars

true
false

mo_l

l

Length in direction of flux

Scalar

mo_A

A

Area of cross section

Scalar

mo_V

V

Volume of FluxTube

Scalar

mo_eddyCurrentFactor

eddyCurrentFactor

Scalar

mo_mu0

mu0

Scalar

mo_eps

eps

Scalar

mo_H0

H0

Scalar

mo_M

M

Scalar

GenericHystTellinenSoft_1

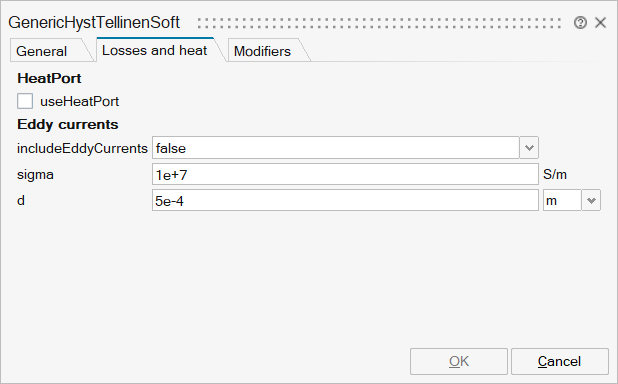

NameLabelDescriptionData TypeValid Values

mo_useHeatPort

useHeatPort

=true, if HeatPort is enabled

Number

0
1

mo_T

T

Fixed device temperature if useHeatPort = false

Scalar

mo_includeEddyCurrents

includeEddyCurrents

=true, if eddy current losses are enabled

Scalar

true
false

mo_sigma

sigma

Conductivity of core material

Scalar

mo_d

d

Thickness of lamination

Scalar

GenericHystTellinenSoft_2

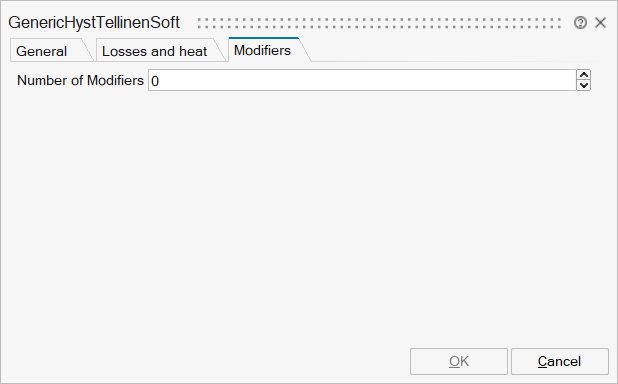

NameLabelDescriptionData TypeValid Values

mo__nmodifiers

Number of Modifiers

Specifies the number of modifiers

Number

mo__modifiers

Modifiers

Add new modifier

Structure

mo__modifiers/varname

Variable name

Cell of strings

'V_m'
'LossPower'
'Hstat'
'Heddy'
'B'
'LossPowerStat'
'LossPowerEddy'
'hystR'
'hystF'
'diffHyst'
'dHyst'
'k'

mo__modifiers/attribute

Attribute

Cell of strings

'start'
'fixed'

mo__modifiers/value

Value

Ports

NameTypeDescriptionIO TypeNumber

port_p

implicit

Positive magnetic port

input

1

port_n

implicit

Negative magnetic port

output

1

Port 3

implicit

input
