HollowCylinderAxialFlux
(Hollow) cylinder with axial flux; fixed shape; linear or non-linear material characteristics
Library
Modelica/Magnetic/FluxTubes/Shapes/FixedShape
Description
Please refer to the enclosing sub-package FixedShape for a description of all elements of this package and to [Ro41] for derivation and/or coefficients of the equation for permeance G_m.
Set the inner radius r_i=0 for modelling of a solid cylindric flux tube.

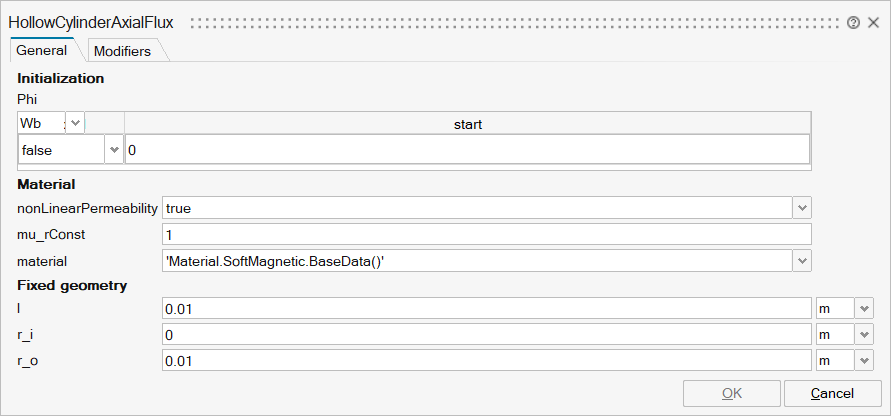

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Phi | Phi | Phi | Structure | |
mo_Phi/fixed | fixed | Cell of scalars | true | |
mo_Phi/start | start | Cell of scalars | ||
mo_nonLinearPermeability | nonLinearPermeability | = true, if non-linear rel. permeability is used, otherwise constant rel. permeability | Scalar | true |
mo_mu_rConst | mu_rConst | Constant relative permeability; used if nonLinearPermeability = false | Scalar | |
mo_material | material | Ferromagnetic material characteristics; used if nonLinearPermeability = true | FromModelica('Modelica.Magnetic.FluxTubes.Material.SoftMagnetic.BaseData') | |
mo_l | l | Axial length (in direction of flux) | Scalar | |
mo_r_i | r_i | Inner radius of hollow cylinder (zero for cylinder) | Scalar | |
mo_r_o | r_o | Outer radius of (hollow) cylinder | Scalar |

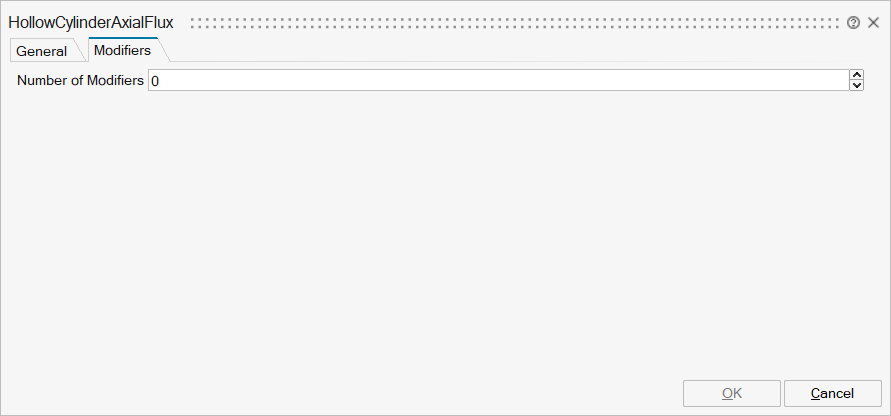

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'V_m' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive magnetic port | input | 1 |
port_n | implicit | Negative magnetic port | output | 1 |
