BaseData
Coefficients for approximation of soft magnetic materials
Library
Modelica/Magnetic/FluxTubes/Material/SoftMagnetic
Description
The parameters needed for approximation of the magnetisation characteristics of included soft magnetic materials are declared in this record.
Parameters

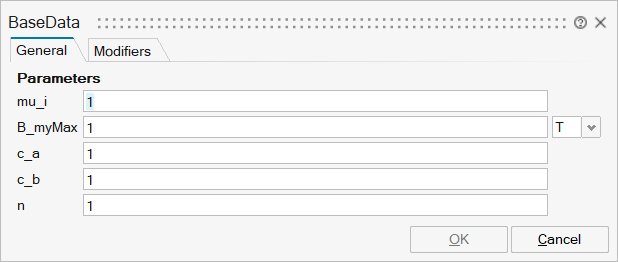

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_mu_i | mu_i | Initial relative permeability at B=0 | Scalar | |
mo_B_myMax | B_myMax | Flux density at maximum relative permeability | Scalar | |
mo_c_a | c_a | Coefficient of approximation function | Scalar | |
mo_c_b | c_b | Coefficient of approximation function | Scalar | |
mo_n | n | Exponent of approximation function | Scalar |

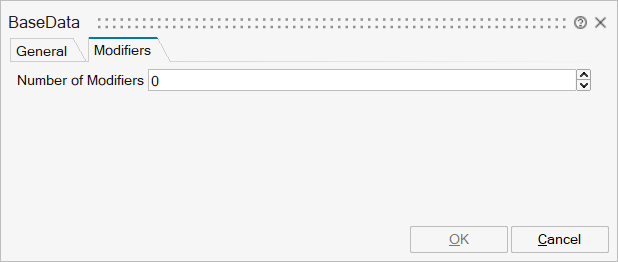

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
