Vacoflux48
Vacoflux48
Library
Modelica/Magnetic/FluxTubes/Material/HysteresisTableData
Description
 |

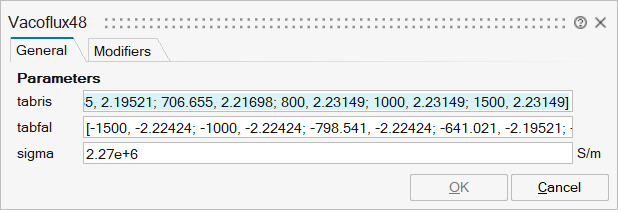

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

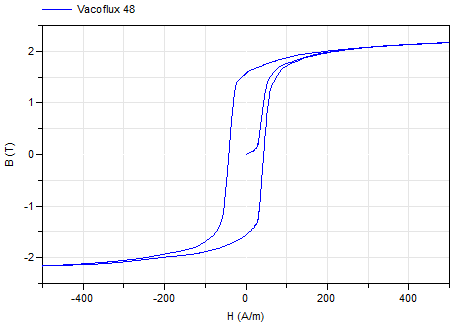

mo_tabris | tabris | Table data of the rising (lower) branch of the hysteresis envelope curve (H, B) | Matrix | |
mo_tabfal | tabfal | Table data of the falling (upper) branch of the hysteresis envelope curve (H, B) | Matrix | |
mo_sigma | sigma | Scalar |

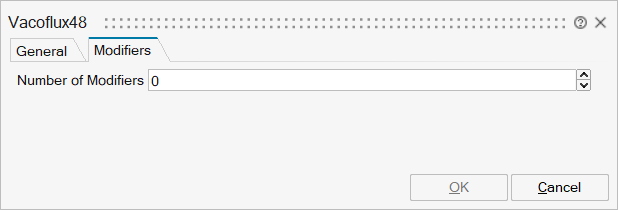

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
