ElectroMagneticConverter
Ideal electro-magnetic energy conversion
Library
Modelica/Magnetic/FluxTubes/Basic
Description

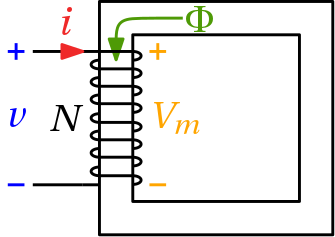

The electro-magnetic energy conversion is given by Ampere's law and Faraday's law respectively:
V_m = i * N N * dΦ/dt = -v
V_m is the magnetomotive force that is supplied to the connected magnetic circuit, Φ is the magnetic flux through the associated branch of this magnetic circuit. The negative sign of the induced voltage v is due to Lenz's law.
The flux linkage Ψ and the static inductance L_stat = |Ψ/i| are calculated for information only. Note that L_stat is set to |Ψ/eps| if |i| < eps(= 100*Modelica.Constants.eps).
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

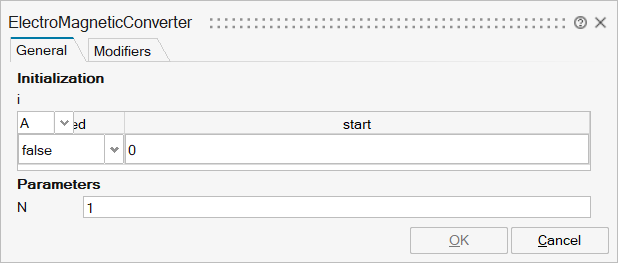

mo_i | i | i | Structure | |
mo_i/fixed | fixed | Cell of scalars | true | |
mo_i/start | start | Cell of scalars | ||
mo_N | N | Number of turns | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

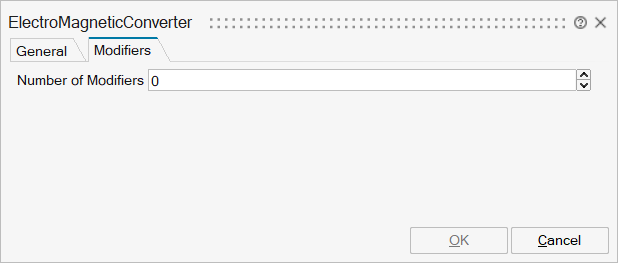

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive magnetic port | input | 1 |
port_n | implicit | Negative magnetic port | output | 1 |
p | implicit | Positive electrical pin | input | 2 |
n | implicit | Negative electrical pin | output | 2 |
