PowerSensor
Power sensor
Library
Modelica/Electrical/QuasiStatic/Polyphase/Sensors
Description
This sensor can be used to measure m complex apparent power values, using msingle-phase PowerSensors.
See also
SinglePhase.Sensors.PowerSensor,ReferenceSensor,FrequencySensor,PotentialSensor,VoltageSensor,VoltageQuasiRMSSensor,CurrentSensor,CurrentQuasiRMSSensor,MultiSensor
Parameters

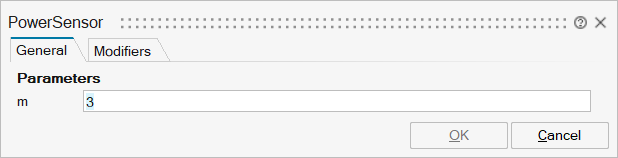

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'omega' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
currentP | implicit | input | 1 | |
currentN | implicit | output | 1 | |
voltageP | implicit | input | 2 | |
voltageN | implicit | output | 2 | |
apparentPower | implicit | Total apparent power as complex output signal | output | 3 |
