ZeroInductor
Linear zero sequence inductor
Library
Modelica/Electrical/Polyphase/Basic
Description
Model of a polyphase zero sequence inductor.
Implementation
v = Lzero*sum(der(i)) = Lzero*der(sum(i))
Parameters

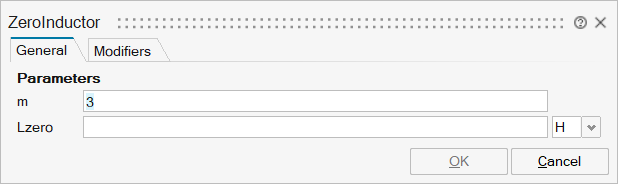

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar | |
mo_Lzero | Lzero | Zero sequence inductance | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

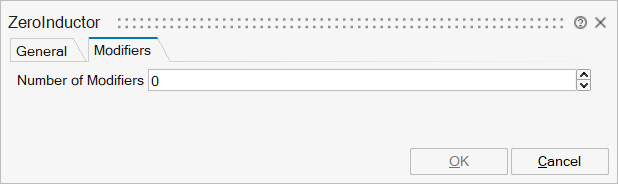

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | Positive polyphase electrical plug with m pins | input | 1 |
plug_n | implicit | Negative polyphase electrical plug with m pins | output | 1 |
