ThermalAmbientTransformer
Thermal ambient for transformers
Library
Modelica/Electrical/Machines/Thermal
Description
Thermal ambient for transformers to prescribe winding temperatures either constant or via signal connectors.Additionally, all losses = heat flows are recorded.Parameters

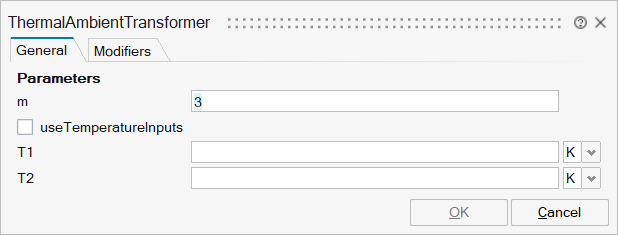

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar | |
mo_useTemperatureInputs | useTemperatureInputs | If true, temperature inputs are used; else, temperatures are constant | Number | 0 |
mo_T1 | T1 | Temperature of primary windings | Scalar | |
mo_T2 | T2 | Temperature of secondary windings | Scalar |

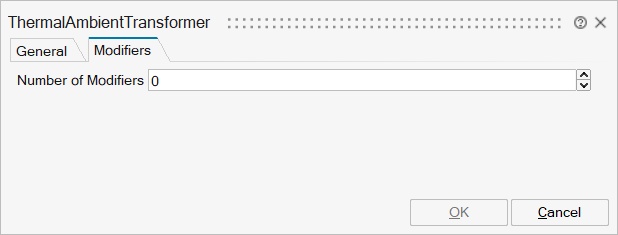

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'Q_flow1' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
thermalPort | implicit | input | 1 | |
Port 2 | implicit | Temperature of primary windings | input | mo_useTemperatureInputs |
Port 3 | implicit | Temperature of secondary windings | input | mo_useTemperatureInputs |
