ThermalAmbientDCPM
Thermal ambient for DC machine with permanent magnets
Library
Modelica/Electrical/Machines/Thermal/DCMachines
Description
Thermal ambient for DC machines with permanent magnets to prescribe winding temperatures either constant or via signal connectors.Additionally, all losses = heat flows are recorded.Parameters

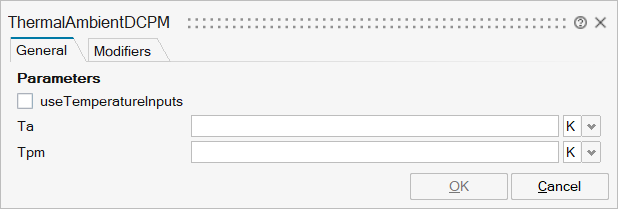

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useTemperatureInputs | useTemperatureInputs | If true, temperature inputs are used; else, temperatures are constant | Number | 0 |
mo_Ta | Ta | Temperature of armature | Scalar | |
mo_Tpm | Tpm | Temperature of permanent magnet | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

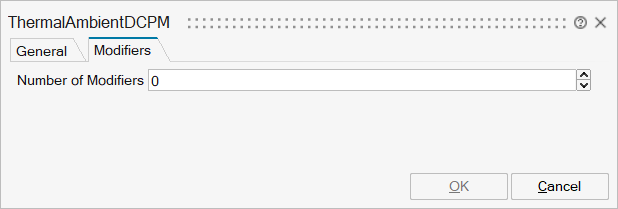

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'Q_flowArmature' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
thermalPort | implicit | input | 1 | |
Port 2 | implicit | Temperature of armature | input | mo_useTemperatureInputs |
Port 3 | implicit | Temperature of permanent magnet | input | mo_useTemperatureInputs |
