SinCosResolver
Sin-Cos-Resolver
Library
Modelica/Electrical/Machines/Sensors
Description
Simple model of a sin-cos-resolver, i.e. sensing the angle of the flange phi (w.r.t. the optional support) and multiplied by p, providing 4 signals:
y[1] = offset + amplitude*cos(p*(phi - phi0))y[2] = offset - amplitude*cos(p*(phi - phi0))y[3] = offset + amplitude*sin(p*(phi - phi0))y[4] = offset - amplitude*sin(p*(phi - phi0))
Thus the sine and cosine signals have p periods per mechanical revolution.Adding an offset > amplitude, the loss of one track can be determined.Subtracting the negated signal from the signal, the offset is removed and a cosine and a sine with doubled amplitude are accessible.From this signal, the angle within one pole pair of a machine can be determined for field oriented control.Block SinCosEvaluation can be used.
This model can be used to export FMUs of drives to develop control strategies in other environments.When switching to a real drive, the same inputs as from the FMU can be used.
Note that phi0 has to be set that way, that in shaft position phi0 the flux linkage of phase 1 is a maximum.In order to sense the mechanical angle of the shaft p = 1 has to be set.

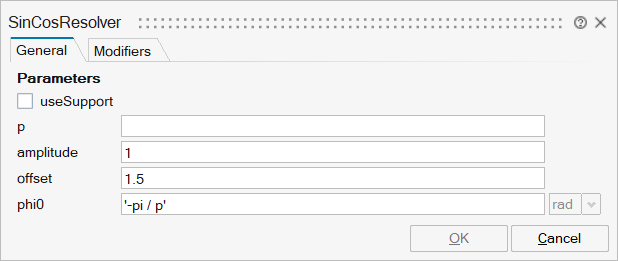

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useSupport | useSupport | = true, if support flange enabled, otherwise implicitly grounded | Number | 0 |
mo_p | p | Number of pole pairs | Scalar | |
mo_amplitude | amplitude | Amplitude of signals | Scalar | |
mo_offset | offset | Offset of signals | Scalar | |
mo_phi0 | phi0 | Initial mechanical angle | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

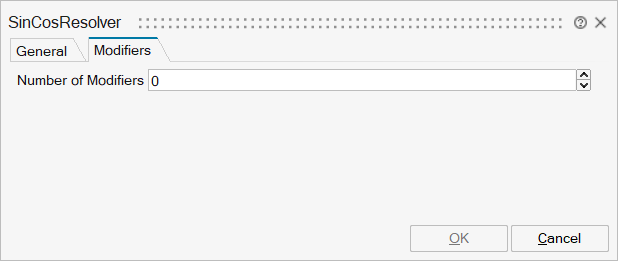

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'phi_support' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
flange | implicit | Flange of shaft | output | 1 |
y | implicit | Track signals | output | 2 |
Port 3 | implicit | Support/housing of component | input | mo_useSupport |
