Brush
Model considering voltage drop of carbon brushes
Library
Modelica/Electrical/Machines/Losses/InductionMachines
Description
Model of voltage drop and losses of carbon brushes. This three-phase model uses threeDC Brush loss models.
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

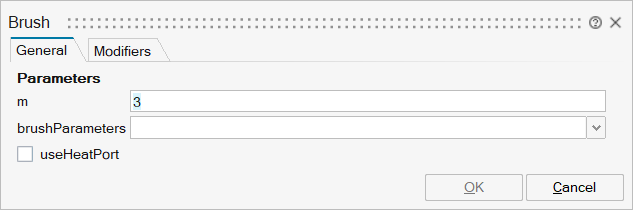

mo_m | m | Number of phases | Scalar | |
mo_brushParameters | brushParameters | Brush loss parameters | FromModelica('Modelica.Electrical.Machines.Losses.BrushParameters') | |
mo_useHeatPort | useHeatPort | =true, if HeatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

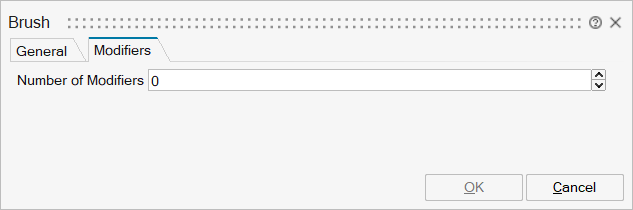

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | Positive polyphase electrical plug with m pins | input | 1 |
plug_n | implicit | Negative polyphase electrical plug with m pins | output | 1 |
Port 3 | implicit | Optional port to which dissipated losses are transported in form of heat | input | mo_useHeatPort |
