BrushParameters
Parameter record for brush losses
Library
Modelica/Electrical/Machines/Losses
Description
Parameter record for three-phase Brush andDC Brush losses.
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

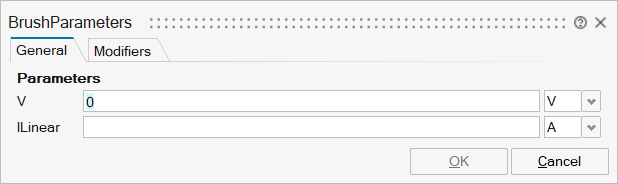

mo_V | V | Total voltage drop of brushes for currents > ILinear | Scalar | |
mo_ILinear | ILinear | Current indicating linear voltage region of brush voltage drop | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

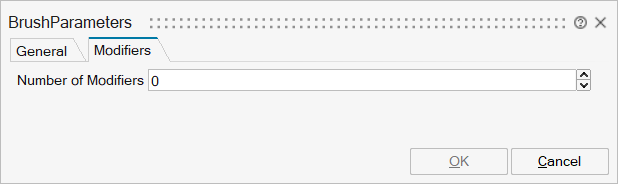

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
