Electrical excitation
Library
Modelica/Electrical/Machines/BasicMachines/Components
Description
Model of an electrical excitation, converting excitation to space phasor.Parameters

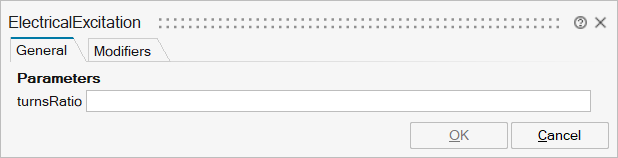

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_turnsRatio | turnsRatio | Ratio stator current / excitation current | Scalar |

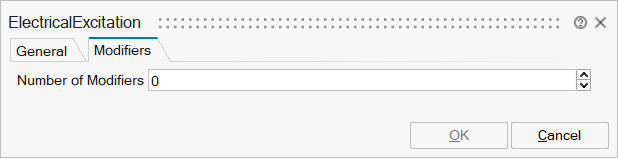

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'ie' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
spacePhasor_r | implicit | input | 1 | |
pin_ep | implicit | input | 2 | |
pin_en | implicit | output | 1 |
