CompoundDCExcitation
Compound excitation = shunt + series
Library
Modelica/Electrical/Machines/BasicMachines/Components
Description
Model to compound the shunt excitation current and the series excitation current to the total excitation current w.r.t. shunt excitation.This model is intended to be placed between shunt and series excitation pins and the airgap;the connection to airgap has to be grounded at one point.Parameters

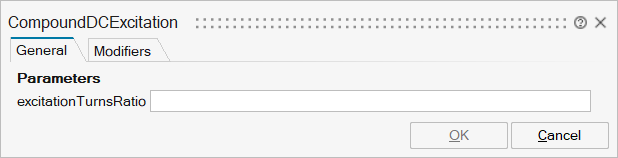

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_excitationTurnsRatio | excitationTurnsRatio | Ratio of series excitation turns over shunt excitation turns | Scalar |

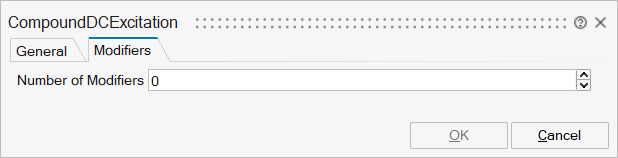

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
pin_p | implicit | Positive pin to airgap | input | 1 |
pin_n | implicit | Negative pin to airgap | output | 1 |
pin_ep | implicit | Positive pin to shunt excitation | input | 2 |
pin_en | implicit | Negative pin to shunt excitation | output | 2 |
pin_sep | implicit | Positive pin to series excitation | input | 3 |
pin_sen | implicit | Negative pin to series excitation | output | 3 |
