AirGapR

Airgap in rotor-fixed coordinate system

AirGapR

Library

Modelica/Electrical/Machines/BasicMachines/Components

Description

Model of the airgap in rotor-fixed coordinate system, using only equations.

Parameters

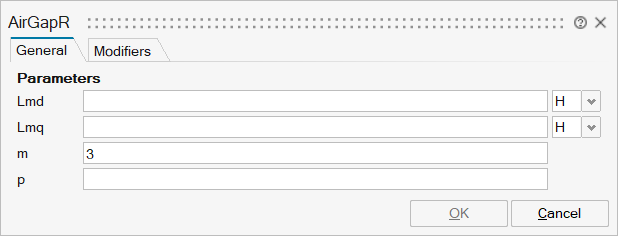

AirGapR_0

Name	Label	Description	Data Type	Valid Values
mo_Lmd	Lmd	Main field inductance d-axis	Scalar
mo_Lmq	Lmq	Main field inductance q-axis	Scalar
mo_m	m	Number of phases	Scalar
mo_p	p	Number of pole pairs	Scalar
mo_L	L	Inductance matrix	Matrix of size 2x2

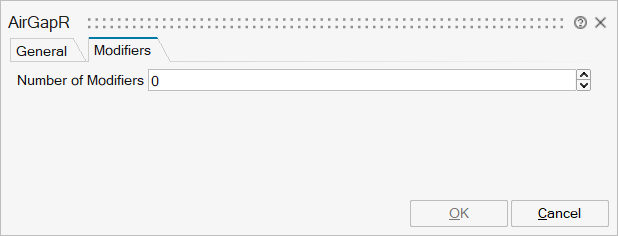

AirGapR_1

Name	Label	Description	Data Type	Valid Values
mo__nmodifiers	Number of Modifiers	Specifies the number of modifiers	Number
mo__modifiers	Modifiers	Add new modifier	Structure
mo__modifiers/varname	Variable name		Cell of strings	'tauElectrical' 'gamma' 'i_ss' 'i_sr' 'i_rs' 'i_rr' 'psi_ms' 'psi_mr' 'RotationMatrix' 'i_mr'
mo__modifiers/attribute	Attribute		Cell of strings	'start' 'fixed'
mo__modifiers/value	Value

Ports

Name	Type	Description	IO Type	Number
flange	implicit		input	1
support	implicit	Support at which the reaction torque is acting	input	2
spacePhasor_s	implicit		input	3
spacePhasor_r	implicit		input	4
