WiredX

Wired node with multiple input and one output

WiredX

Library

Modelica/Electrical/Digital/Tristates

Wires n input signals in one output signal, without delay.

Resolution table is given by http://www.cs.sfu.ca/~ggbaker/reference/std_logic/src/std_logic_misc.vhd

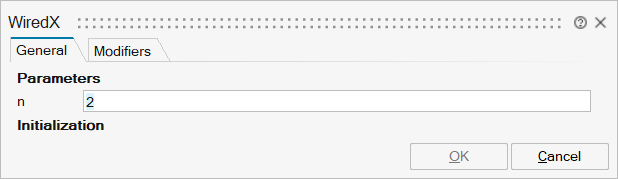

WiredX_0

Name	Label	Description	Data Type	Valid Values
mo_n	n	Number of inputs	Scalar
mo_auxiliary	auxiliary	auxiliary	Structure
mo_auxiliary/fixed	fixed		Cell of vectors	true false
mo_auxiliary/start	start			FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''U''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''X''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''0''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''1''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''Z''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''W''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''L''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''H''') FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''-''') 'L.''Z'''

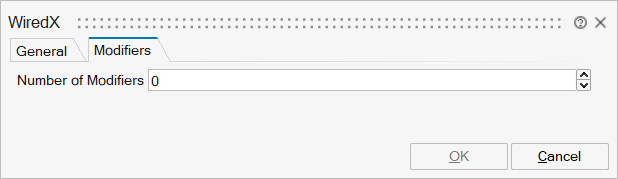

WiredX_1

Name	Label	Description	Data Type	Valid Values
mo__nmodifiers	Number of Modifiers	Specifies the number of modifiers	Number
mo__modifiers	Modifiers	Add new modifier	Structure
mo__modifiers/varname	Variable name		Cell of strings
mo__modifiers/attribute	Attribute		Cell of strings	'start' 'fixed'
mo__modifiers/value	Value

Name	Type	Description	IO Type	Number
x	implicit	Connector of Digital input signal vector	input	1
y	implicit	Connector of Digital output signal	output	1

Name

Type

Description

IO Type

Number

implicit

Connector of Digital input signal vector

input

implicit

Connector of Digital output signal

output
