LogicToUX01
Conversion to UX01
Library
Modelica/Electrical/Digital/Converters
Description
Conversion of a nine valued digital input into a UX01 digital output withoutany delay according to IEEE 1164 To_UX01 function.
Conversion Table:
input output 'U' (coded by 1) 'U' (coded by 1) 'X' (coded by 2) 'X' (coded by 2) '0' (coded by 3) '0' (coded by 3) '1' (coded by 4) '1' (coded by 4) 'Z' (coded by 5) 'X' (coded by 2) 'W' (coded by 6) 'X' (coded by 2) 'L' (coded by 7) '0' (coded by 3) 'H' (coded by 8) '1' (coded by 4) '-' (coded by 9) 'X' (coded by 2)
If the signal width is greater than 1 this conversion is done for each signal.

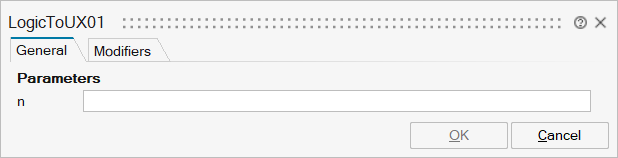

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_n | n | signal width | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

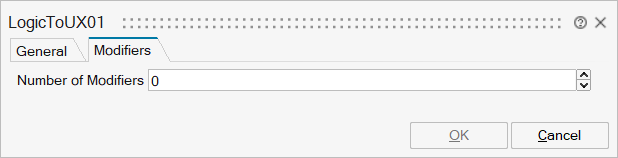

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
x | implicit | input | 1 | |
y | implicit | output | 1 |
