Not
Not logic component without delay
Library
Modelica/Electrical/Digital/Basic
Description
Not component with 1 input value, without delay.
According to the standard logic not table (Tables.NotTable) the output value is calculated.
To avoid loops in the numerical treatment, the pre operator is applied to the output.
Parameters

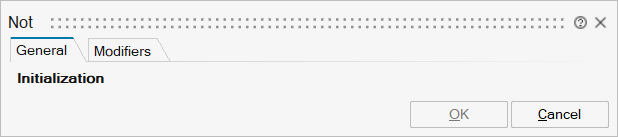

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_auxiliary | auxiliary | auxiliary | Structure | |
mo_auxiliary/fixed | fixed | Cell of scalars | true | |
mo_auxiliary/start | start | FromModelica('Modelica.Electrical.Digital.Interfaces.Logic.''U''') |

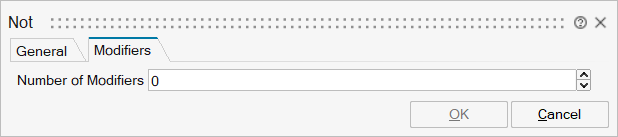

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
x | implicit | Connector of Digital input signal | input | 1 |
y | implicit | Connector of Digital output signal | output | 1 |
