TLine2
Lossless transmission line with characteristic impedance Z0, frequency F and normalized length NL
Library
Modelica/Electrical/Analog/Lines
Description
Lossless transmission line with characteristic impedance Z0, frequency F and normalized length NL The lossless transmission line TLine2 is a two Port. Both port branches consist of a resistor with the value of the characteristic impedance Z0 and a controlled voltage source that takes into consideration the transmission delay. For further details see Branin's article below. Resistance R' and conductance C' per meter are assumed to be zero. The characteristic impedance Z0 can be derived from inductance and capacitance per length (L' resp. C'), i. e. Z0 = sqrt(L'/C'). The normalized length NL is equal to the length of the line divided by the wavelength corresponding to the frequency F, i. e. the transmission delay TD is the quotient of NL and F.
References:
- Branin Jr., F. H.
- Transient Analysis of Lossless Transmission Lines. Proceedings of the IEEE 55(1967), 2012 - 2013
- Hoefer, E. E. E.; Nielinger, H.
- SPICE : Analyseprogramm fuer elektronische Schaltungen. Springer-Verlag, Berlin, Heidelberg, New York, Tokyo, 1985.

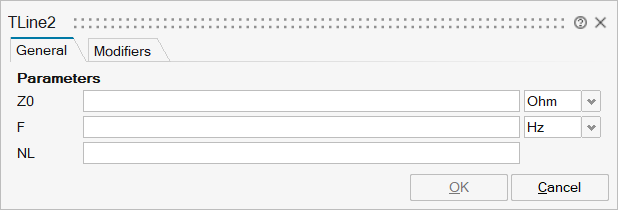

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Z0 | Z0 | Characteristic impedance | Scalar | |
mo_F | F | Frequency | Scalar | |
mo_NL | NL | Normalized length | Scalar | |
mo_TD | TD | Scalar |

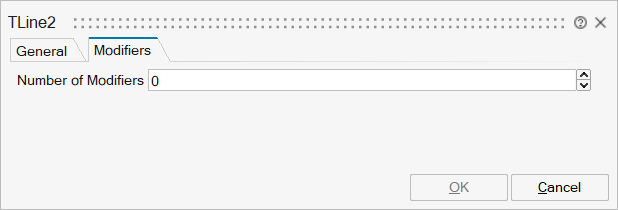

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v1' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
p1 | implicit | Positive electrical pin of port 1 | input | 1 |
n1 | implicit | Negative electrical pin of port 1 | output | 1 |
p2 | implicit | Positive electrical pin of port 2 | input | 2 |
n2 | implicit | Negative electrical pin of port 2 | output | 2 |
