IdealGTOThyristor
Ideal GTO thyristor
Library
Modelica/Electrical/Analog/Ideal
Description
This is an ideal GTO thyristor or switching transistor, for details see partial model IdealSemiconductor
The GTO thyristor is conducting if voltage > Vknee AND fire = true.
Otherwise, the GTO thyristor is locking.
Parameters

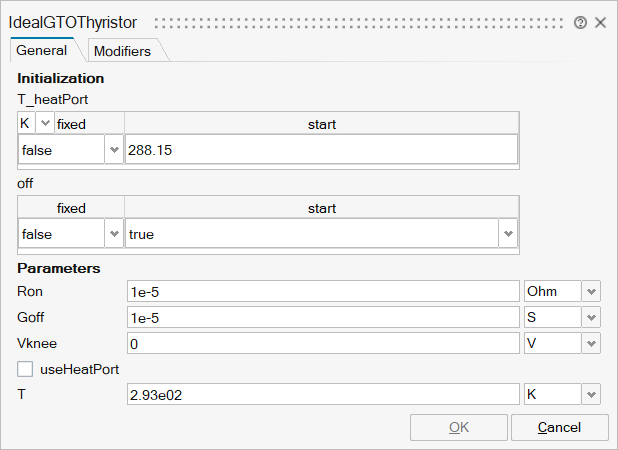

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_T_heatPort | T_heatPort | T_heatPort | Structure | |
mo_T_heatPort/fixed | fixed | Cell of scalars | true | |
mo_T_heatPort/start | start | Cell of scalars | ||
mo_off | off | off | Structure | |
mo_off/fixed | fixed | Cell of scalars | true | |
mo_off/start | start | Cell of scalars | true | |
mo_s | s | s | Structure | |
mo_s/fixed | fixed | Cell of scalars | true | |
mo_s/start | start | Cell of scalars | ||
mo_Ron | Ron | Forward state-on differential resistance (closed resistance) | Scalar | |
mo_Goff | Goff | Backward state-off conductance (opened conductance) | Scalar | |
mo_Vknee | Vknee | Forward threshold voltage | Scalar | |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

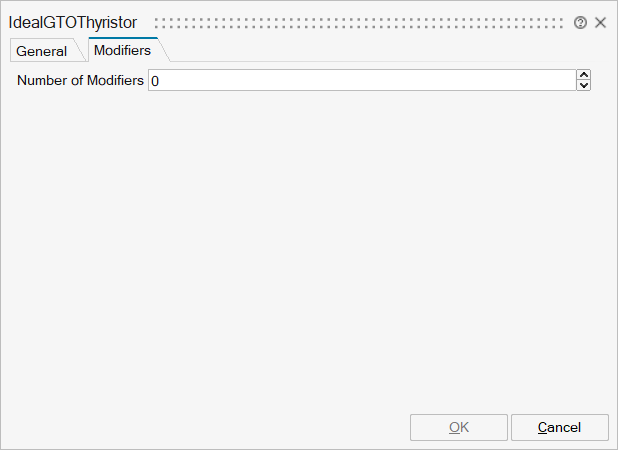

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
p | implicit | Positive electrical pin | input | 1 |
n | implicit | Negative electrical pin | output | 1 |
fire | implicit | input | 2 | |
Port 4 | implicit | Conditional heat port | input | mo_useHeatPort |
