DA_Converter

Simple digital to analog converter

    DA_Converter

Library

Modelica/Electrical/Analog/Ideal

Description

Simple digital to analog converter with a variable input signal width of N bits. The input signal is an N-vector of type Logic (9-valued logic according to IEEE 1164 STD_ULOGIC). The output voltage of value y is generated by an ideal voltage source. The output can only change if the trigger signal trig of type Logic changes to '1' (forced or weak). In this case, the output voltage is calculated in the following way:

       N  y = SUM ( x[i]*2^(i-1) )*Vref/(2^N-1),      i=1

where x[i], i=1,...,N is 1 or 0. and Vref is the reference value. Therefore, the first bit in the input vector x[1] is the least significant one (LSB) and x[N] is the most significant bit (MSB).

This is an abstract model of a DAC. Hence, it can not cover the dynamic behaviour of the converter. Therefore the output will change instantaneously when the trigger signal rises.

Parameters

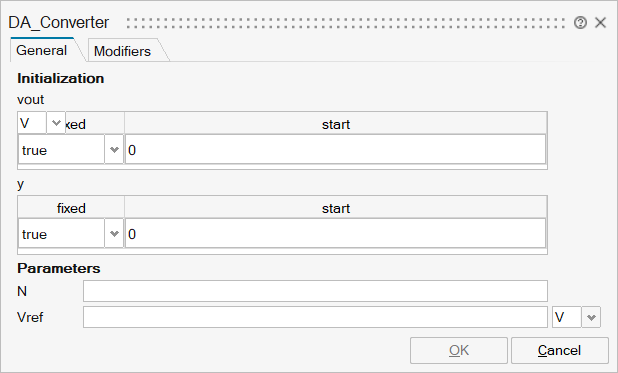

DA_Converter_0

NameLabelDescriptionData TypeValid Values

mo_vout

vout

vout

Structure

mo_vout/fixed

fixed

Cell of scalars

true
false

mo_vout/start

start

Cell of scalars

mo_y

y

y

Structure

mo_y/fixed

fixed

Cell of scalars

true
false

mo_y/start

start

Cell of scalars

mo_N

N

Resolution - input signal width

Scalar

mo_Vref

Vref

Reference voltage

Scalar

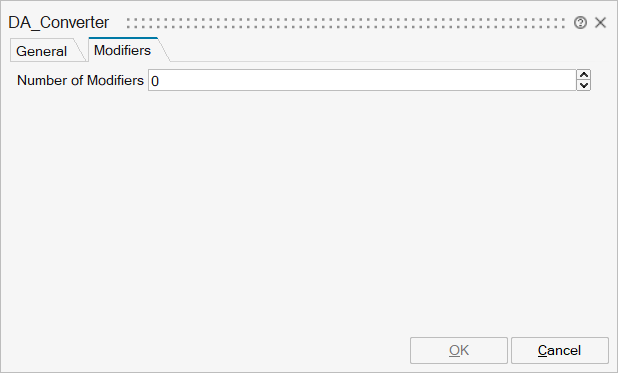

DA_Converter_1

NameLabelDescriptionData TypeValid Values

mo__nmodifiers

Number of Modifiers

Specifies the number of modifiers

Number

mo__modifiers

Modifiers

Add new modifier

Structure

mo__modifiers/varname

Variable name

Cell of strings

mo__modifiers/attribute

Attribute

Cell of strings

'start'
'fixed'

mo__modifiers/value

Value

Ports

NameTypeDescriptionIO TypeNumber

trig

implicit

Trigger input

input

1

x

implicit

Digital input

input

2

p

implicit

Positive electrical pin (output)

input

3

n

implicit

Negative electrical pin (output)

output

1
