VCV
Linear voltage-controlled voltage source
Library
Modelica/Electrical/Analog/Basic
Description
The linear voltage-controlled voltage source is a TwoPort. The right port voltage v2 is controlled by the left port voltage v1 via
v2 = v1 * gain.
The left port current is zero. Any voltage gain can be chosen.

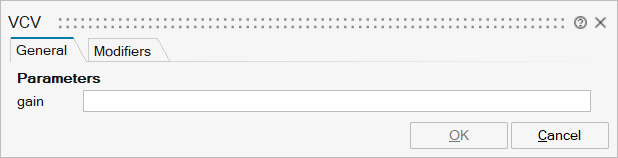

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_gain | gain | Voltage gain | Scalar |

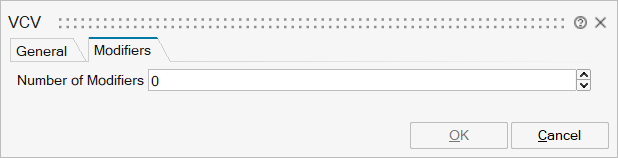

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v1' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
p1 | implicit | Positive electrical pin of port 1 | input | 1 |
n1 | implicit | Negative electrical pin of port 1 | output | 1 |
p2 | implicit | Positive electrical pin of port 2 | input | 2 |
n2 | implicit | Negative electrical pin of port 2 | output | 2 |
