# CombiTable1Ds

Table look-up in one dimension (matrix/file) with one input and n outputs

## Library

Modelica/Blocks/Tables

## Description

**Univariate constant**, **linear** or **cubic Hermitespline interpolation** in **one** dimension of a**table**.Via parameter **columns** it can be defined how many columns of thetable are interpolated. If, e.g., columns={2,4}, it is assumed that2 output signals are present and that the first output interpolatesvia column 2 and the second output interpolates via column 4 of thetable matrix.

The grid points and function values are stored in a matrix "table[i,j]",where the first column "table[:,1]" contains the grid points and theother columns contain the data to be interpolated. Example:

table = [0, 0; 1, 1; 2, 4; 4, 16] If, e.g., the input u = 1.0, the output y = 1.0, e.g., the input u = 1.5, the output y = 2.5, e.g., the input u = 2.0, the output y = 4.0, e.g., the input u =-1.0, the output y = -1.0 (i.e., extrapolation).

- The interpolation interval is found by a binary search where the interval used in the last call is used as start interval.
- Via parameter
**smoothness**it is defined how the data is interpolated:smoothness = 1: Linear interpolation = 2: Akima interpolation: Smooth interpolation by cubic Hermite splines such that der(y) is continuous, also if extrapolated. = 3: Constant segments = 4: Fritsch-Butland interpolation: Smooth interpolation by cubic Hermite splines such that y preserves the monotonicity and der(y) is continuous, also if extrapolated. = 5: Steffen interpolation: Smooth interpolation by cubic Hermite splines such that y preserves the monotonicity and der(y) is continuous, also if extrapolated.

- Values
**outside**of the table range, are computed by extrapolation according to the setting of parameter**extrapolation**:extrapolation = 1: Hold the first or last value of the table, if outside of the table scope. = 2: Extrapolate by using the derivative at the first/last table points if outside of the table scope. (If smoothness is LinearSegments or ConstantSegments this means to extrapolate linearly through the first/last two table points.). = 3: Periodically repeat the table data (periodical function). = 4: No extrapolation, i.e. extrapolation triggers an error

- If the table has only
**one row**, the table value is returned, independent of the value of the input signal. - The grid values (first column) have to be strictly increasing.

The table matrix can be defined in the following ways:

- Explicitly supplied as
**parameter matrix**"table", and the other parameters have the following values:tableName is "NoName" or has only blanks, fileName is "NoName" or has only blanks.

**Read**from a**file**"fileName" where the matrix is stored as "tableName". Both text and MATLAB MAT-file format is possible. (The text format is described below). The MAT-file format comes in four different versions: v4, v6, v7 and v7.3. The library supports at least v4, v6 and v7 whereas v7.3 is optional. It is most convenient to generate the MAT-file from FreeMat or MATLAB® by commandsave tables.mat tab1 tab2 tab3

or Scilab by commandsavematfile tables.mat tab1 tab2 tab3

when the three tables tab1, tab2, tab3 should be used from the model.

Note, a fileName can be defined as URI by using the helper function loadResource.- Statically stored in function "usertab" in file "usertab.c". The matrix is identified by "tableName". Parameter fileName = "NoName" or has only blanks. Row-wise storage is always to be preferred as otherwise the table is reallocated and transposed. See the Tables package documentation for more details.

When the constant "NO_FILE_SYSTEM" is defined, all file I/O related parts of thesource code are removed by the C-preprocessor, such that no access to files takes place.

If tables are read from a text file, the file needs to have thefollowing structure ("-----" is not part of the file content):

-----------------------------------------------------#1double tab1(5,2) # comment line 0 0 1 1 2 4 3 9 4 16double tab2(5,2) # another comment line 0 0 2 2 4 8 6 18 8 32-----------------------------------------------------

Note, that the first two characters in the file need to be"#1" (a line comment defining the version number of the file format).Afterwards, the corresponding matrix has to be declaredwith type (= "double" or "float"), name and actual dimensions.Finally, in successive rows of the file, the elements of the matrixhave to be given. The elements have to be provided as a sequence ofnumbers in row-wise order (therefore a matrix row can span severallines in the file and need not start at the beginning of a line).Numbers have to be given according to C syntax (such as 2.3, -2, +2.e4).Number separators are spaces, tab (\\t), comma (,), or semicolon (;).Several matrices may be defined one after another. Line comments startwith the hash symbol (#) and can appear everywhere.Text files should either be ASCII or UTF-8 encoded, where UTF-8 encoded strings are only allowed in line comments and an optional UTF-8 BOM at the start of the text file is ignored.Other characters, like trailing non comments, are not allowed in the file.

MATLAB is a registered trademark of The MathWorks, Inc.

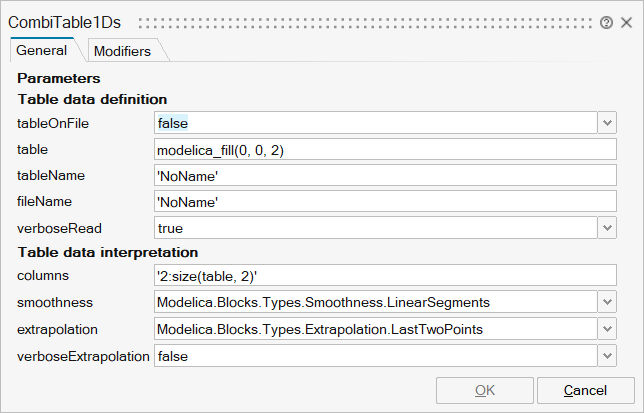

## Parameters

Name | Label | Description | Data Type | Valid Values |
---|---|---|---|---|

| nout | Number of outputs | Scalar | |

| u_min | Minimum abscissa value defined in table | Scalar | |

| u_max | Maximum abscissa value defined in table | Scalar | |

| tableID | External table object | Scalar | |

| tableOnFile | = true, if table is defined on file or in function usertab | Scalar | true |

| table | Table matrix (grid = first column; e.g., table=[0, 0; 1, 1; 2, 4]) | Matrix | |

| tableName | Table name on file or in function usertab (see docu) | String | |

| fileName | File where matrix is stored | String | |

| verboseRead | = true, if info message that file is loading is to be printed | Scalar | true |

| columns | Columns of table to be interpolated | Vector | |

| smoothness | Smoothness of table interpolation | Structure | |

| Table points are linearly interpolated | Number | 0 | |

| Table points are interpolated (by Akima splines) such that the first derivative is continuous | Number | 0 | |

| Table points are not interpolated, but the value from the previous abscissa point is returned | Number | 0 | |

| Table points are interpolated (by Fritsch-Butland splines) such that the monotonicity is preserved and the first derivative is continuous | Number | 0 | |

| Table points are interpolated (by Steffen splines) such that the monotonicity is preserved and the first derivative is continuous | Number | 0 | |

| extrapolation | Extrapolation of data outside the definition range | Structure | |

| Hold the first/last table point outside of the table scope | Number | 0 | |

| Extrapolate by using the derivative at the first/last table points outside of the table scope | Number | 0 | |

| Repeat the table scope periodically | Number | 0 | |

| Extrapolation triggers an error | Number | 0 | |

| verboseExtrapolation | = true, if warning messages are to be printed if table input is outside the definition range | Scalar | true |

Name | Label | Description | Data Type | Valid Values |
---|---|---|---|---|

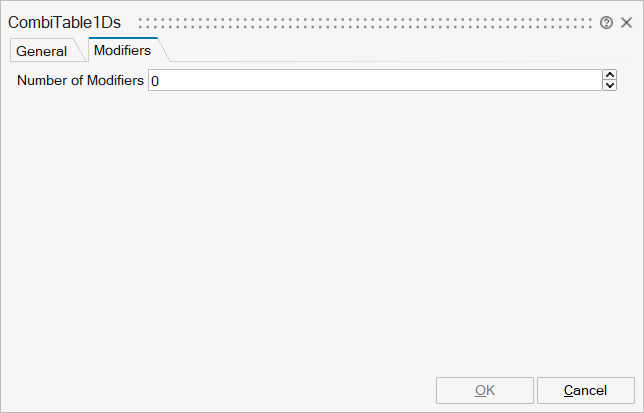

| Number of Modifiers | Specifies the number of modifiers | Number | |

| Modifiers | Add new modifier | Structure | |

| Variable name | Cell of strings | ||

| Attribute | Cell of strings | 'start' | |

| Value |

## Ports

Name | Type | Description | IO Type | Number |
---|---|---|---|---|

| implicit | Connector of Real input signal | input | 1 |

| implicit | Connector of Real output signals | output | 1 |
