Trapezoid
Generate trapezoidal signal of type Real
Library
Modelica/Blocks/Sources
Description
The Real output y is a trapezoid signal:
Parameters

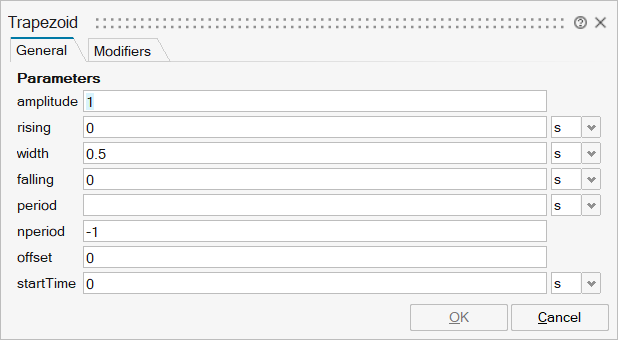

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_amplitude | amplitude | Amplitude of trapezoid | Scalar | |
mo_rising | rising | Rising duration of trapezoid | Scalar | |
mo_width | width | Width duration of trapezoid | Scalar | |
mo_falling | falling | Falling duration of trapezoid | Scalar | |
mo_period | period | Time for one period | Scalar | |
mo_nperiod | nperiod | Number of periods (< 0 means infinite number of periods) | Scalar | |
mo_offset | offset | Offset of output signal y | Scalar | |
mo_startTime | startTime | Output y = offset for time < startTime | Scalar | |
mo_T_rising | T_rising | End time of rising phase within one period | Scalar | |
mo_T_width | T_width | End time of width phase within one period | Scalar | |
mo_T_falling | T_falling | End time of falling phase within one period | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

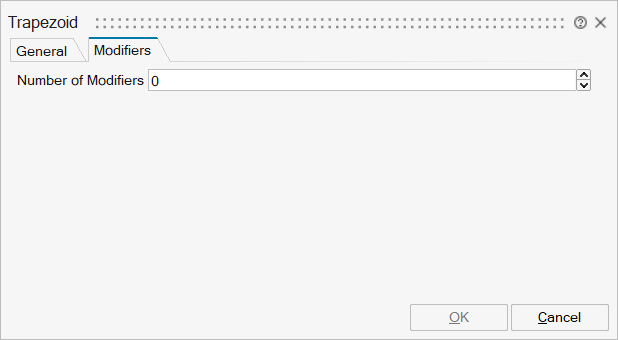

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'T_start' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | Connector of Real output signal | output | 1 |
