SawTooth
Generate saw tooth signal
Library
Modelica/Blocks/Sources
Description
The Real output y is a saw tooth signal:

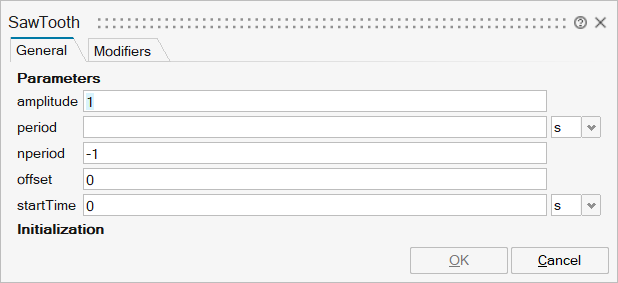

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_amplitude | amplitude | Amplitude of saw tooth | Scalar | |
mo_period | period | Time for one period | Scalar | |
mo_nperiod | nperiod | Number of periods (< 0 means infinite number of periods) | Scalar | |
mo_offset | offset | Offset of output signal y | Scalar | |
mo_startTime | startTime | Output y = offset for time < startTime | Scalar | |
mo_T_start | T_start | T_start | Structure | |
mo_T_start/fixed | fixed | Cell of scalars | true | |
mo_T_start/start | start | Cell of scalars |

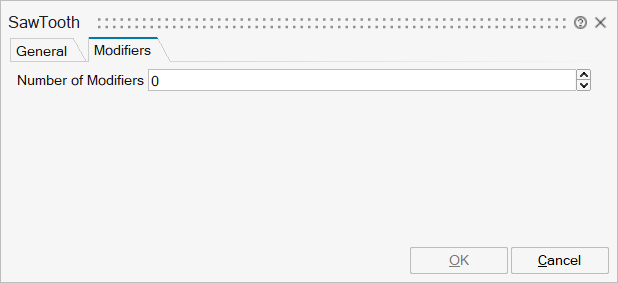

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'count' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | Connector of Real output signal | output | 1 |
