Cosine
Generate cosine signal
Library
Modelica/Blocks/Sources
Description
The Real output y is a cosine signal:

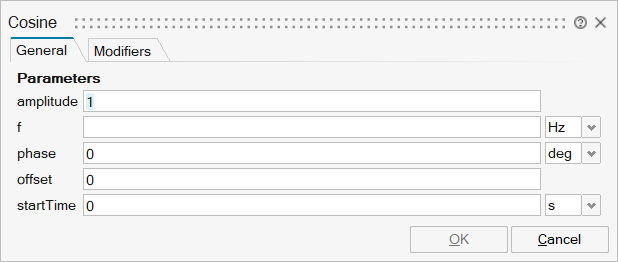

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_amplitude | amplitude | Amplitude of cosine wave | Scalar | |
mo_freqHz | freqHz | Frequency of cosine wave | Scalar | |
mo_phase | phase | Phase of cosine wave | Scalar | |
mo_offset | offset | Offset of output signal y | Scalar | |
mo_startTime | startTime | Output y = offset for time < startTime | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

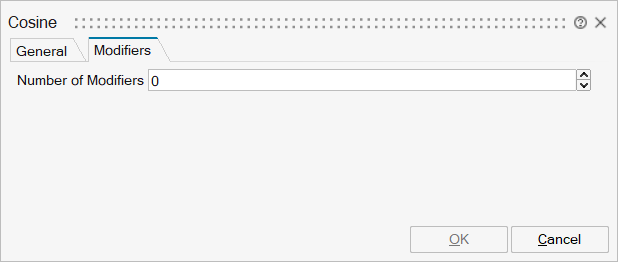

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | Connector of Real output signal | output | 1 |
