BooleanTable

Description

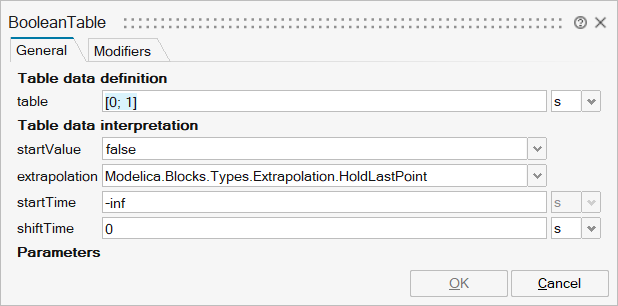

The Boolean output y is a signal defined by parameter vector table.In the vector time points are stored.The table interpolation has the following properties:

• At every time point, the output y changes its value to the negated value of the previous one.
• Values outside of the table range, are computed by extrapolation according to the setting of parameter extrapolation:

  extrapolation = 1: Hold the startValue or last value of the table,                   if outside of the table scope.              = 2: Extrapolate by using the derivative at the first/last table                   points if outside of the table scope.                   (This setting is not suitable and triggers an assert.)              = 3: Periodically repeat the table data (periodical function).              = 4: No extrapolation, i.e. extrapolation triggers an error

• Via parameter shiftTime the curve defined by the table can be shifted in time. The time instants stored in the table are therefore relative to shiftTime.
• If time < startTime, no interpolation is performed and false is used as ordinate value for the output.

The precise semantics is:

if size(table,1) == 0 then   y = startValue;else   //            time < table[1]: y = startValue   // table[1] ≤ time < table[2]: y = not startValue   // table[2] ≤ time < table[3]: y = startValue   // table[3] ≤ time < table[4]: y = not startValue   // ...end if;
