BooleanPulse
Generate pulse signal of type Boolean
Library
Modelica/Blocks/Sources
Description
The Boolean output y is a pulse signal:
Parameters

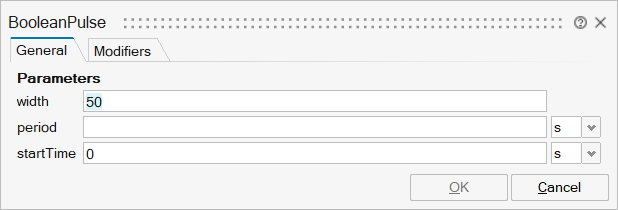

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_width | width | Width of pulse in % of period | Scalar | |
mo_period | period | Time for one period | Scalar | |
mo_startTime | startTime | Time instant of first pulse | Scalar | |
mo_Twidth | Twidth | width of one pulse | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

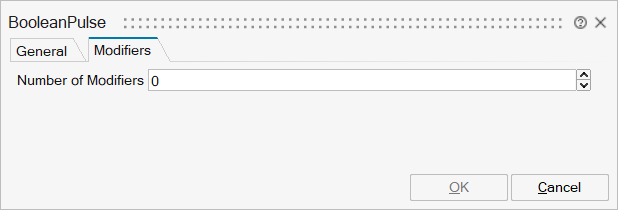

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'pulseStart' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
y | implicit | Connector of Boolean output signal | output | 1 |
