SlewRateLimiter
Limits the slew rate of a signal
Library
Modelica/Blocks/Nonlinear
Description
The SlewRateLimiter block limits the slew rate of its input signal in the range of [Falling, Rising].
To ensure this for arbitrary inputs and in order to produce a differential output, the input is numerically differentiatedwith derivative time constant Td. Smaller time constant Td means nearer ideal derivative.
Note: The user has to choose the derivative time constant according to the nature of the input signal.

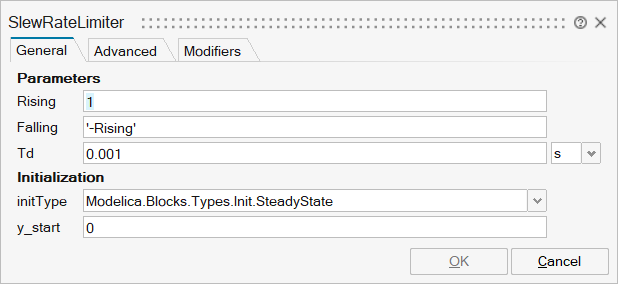

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Rising | Rising | Maximum rising slew rate [+small..+inf) [1/s] | Scalar | |
mo_Falling | Falling | Maximum falling slew rate (-inf..-small] [1/s] | Scalar | |
mo_Td | Td | Derivative time constant | Scalar | |
mo_initType | initType | Type of initialization (SteadyState implies y = u) | Structure | |
mo_initType/choice1 | No initialization (start values are used as guess values with fixed=false) | Number | 0 | |
mo_initType/choice2 | Steady state initialization (derivatives of states are zero) | Number | 0 | |
mo_initType/choice3 | Initialization with initial states | Number | 0 | |
mo_initType/choice4 | Initialization with initial outputs (and steady state of the states if possible) | Number | 0 | |
mo_y_start | y_start | Initial or guess value of output (= state) | Scalar |

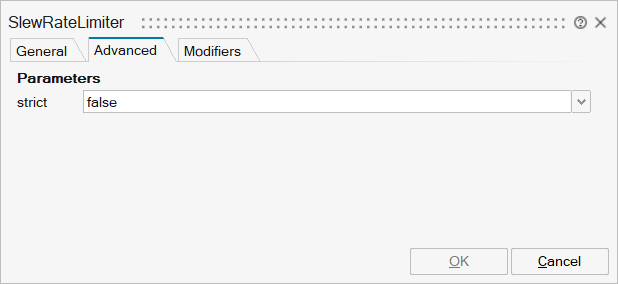

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_strict | strict | = true, if strict limits with noEvent(..) | Scalar | true |

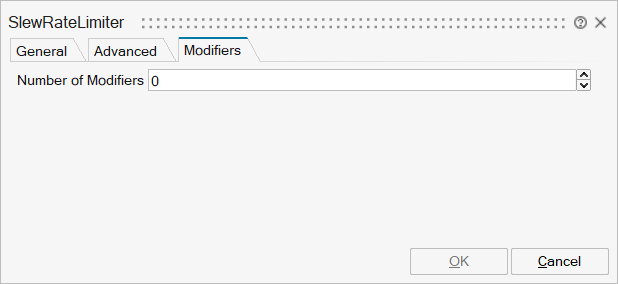

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'val' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Connector of Real input signal | input | 1 |
y | implicit | Connector of Real output signal | output | 1 |
