Mean
Calculate mean over period 1/f
Library
Modelica/Blocks/Math
Description
This block calculates the mean of the input signal u over the given period 1/f:
1 T- ∫ u(t) dtT 0
Note: The output is updated after each period defined by 1/f.

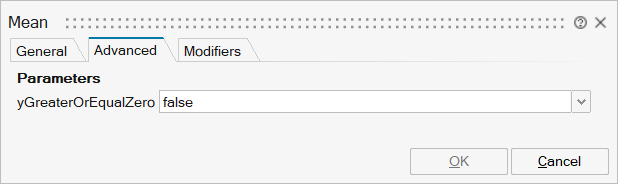

If parameter yGreaterOrEqualZero in the Advanced tab is true (default = false),then the modeller provides the information that the mean of the input signal is guaranteedto be ≥ 0 for the exact solution. However, due to inaccuracies in the numerical integration scheme,the output might be slightly negative. If this parameter is set to true, then the output isexplicitly set to 0.0, if the mean value results in a negative value.

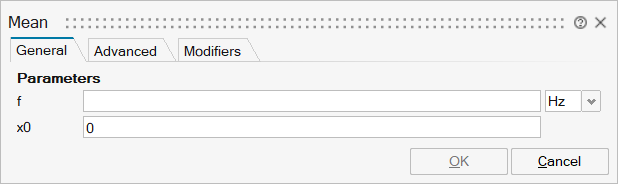

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_f | f | Base frequency | Scalar | |
mo_x0 | x0 | Start value of integrator state | Scalar | |
mo_t0 | t0 | Start time of simulation | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_yGreaterOrEqualZero | yGreaterOrEqualZero | =true, if output y is guaranteed to be >= 0 for the exact solution | Scalar | true |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

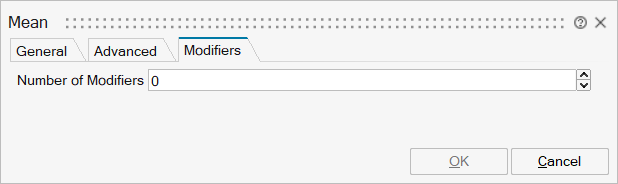

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'x' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Connector of Real input signal | input | 1 |
y | implicit | Connector of Real output signal | output | 1 |
