LinearDependency
Output a linear combination of the two inputs
Library
Modelica/Blocks/Math
Description
Determine the linear combination of the two inputs: y = y0 + k1*u1 + k2*u2

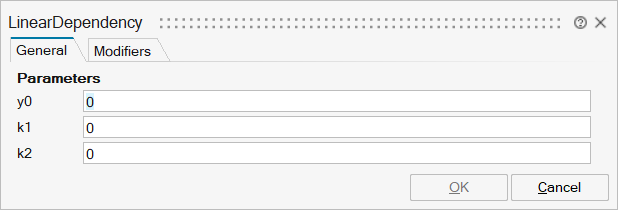

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_y0 | y0 | Initial value | Scalar | |
mo_k1 | k1 | Gain of u1 | Scalar | |
mo_k2 | k2 | Gain of u2 | Scalar |

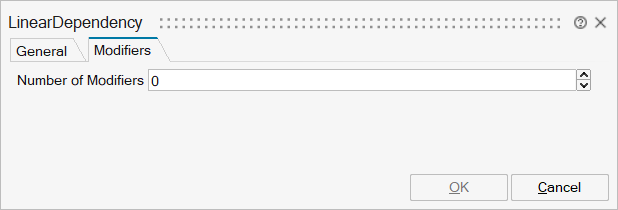

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u1 | implicit | Connector of Real input signal 1 | input | 1 |
u2 | implicit | Connector of Real input signal 2 | input | 2 |
y | implicit | Connector of Real output signal | output | 1 |
