Add3

Output the sum of the three inputs

Add3

Library

Modelica/Blocks/Math

This blocks computes output y as sum of thethree input signals u1, u2 and u3:

    y = k1*u1 + k2*u2 + k3*u3;

Example:

     parameter:   k1= +2, k2= -3, k3=1;  results in the following equations:     y = 2 * u1 - 3 * u2 + u3;

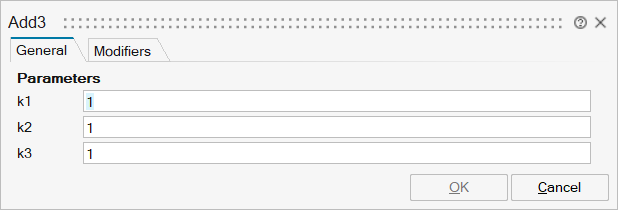

Add3_0

Name	Label	Description	Data Type
mo_k1	k1	Gain of input signal 1	Scalar
mo_k2	k2	Gain of input signal 2	Scalar
mo_k3	k3	Gain of input signal 3	Scalar

Name

Label

Description

Data Type

Valid Values

mo_k1

Gain of input signal 1

Scalar

mo_k2

Gain of input signal 2

Scalar

mo_k3

Gain of input signal 3

Scalar

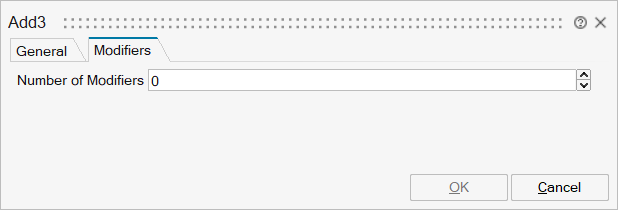

Add3_1

Name	Label	Description	Data Type	Valid Values
mo__nmodifiers	Number of Modifiers	Specifies the number of modifiers	Number
mo__modifiers	Modifiers	Add new modifier	Structure
mo__modifiers/varname	Variable name		Cell of strings
mo__modifiers/attribute	Attribute		Cell of strings	'start' 'fixed'
mo__modifiers/value	Value

Name	Type	Description	IO Type	Number
u1	implicit	Connector of Real input signal 1	input	1
u2	implicit	Connector of Real input signal 2	input	2
u3	implicit	Connector of Real input signal 3	input	3
y	implicit	Connector of Real output signal	output	1
