Pre
Breaks algebraic loops by an infinitesimal small time delay (y = pre(u): event iteration continues until u = pre(u))
Library
Modelica/Blocks/Logical
Description
This block delays the Boolean input by an infinitesimal small time delay andtherefore breaks algebraic loops. In a network of logical blocks, in every"closed connection loop" at least one logical block must have a delay,since algebraic systems of Boolean equations are not solvable.
The "Pre" block returns the value of the "input" signal from thelast "event iteration". The "event iteration" stops, once bothvalues are identical (u = pre(u)).
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

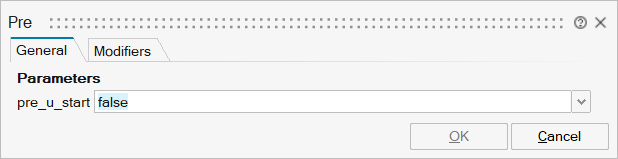

mo_pre_u_start | pre_u_start | Start value of pre(u) at initial time | Scalar | true |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

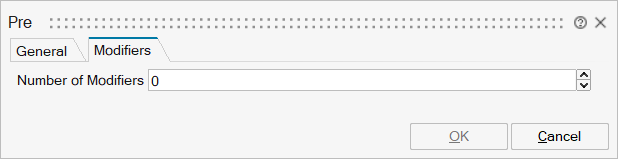

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Connector of Boolean input signal | input | 1 |
y | implicit | Connector of Boolean output signal | output | 1 |
