Edge
Output y is true, if the input u has a rising edge (y = edge(u))
Library
Modelica/Blocks/Logical
Description
The output is true if the Boolean input has a rising edgefrom false to true, otherwisethe output is false.

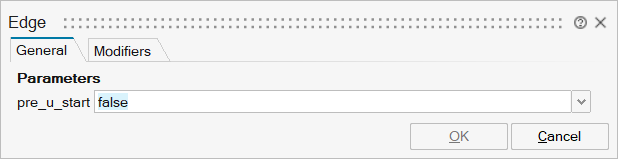

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_pre_u_start | pre_u_start | Start value of pre(u) at initial time | Scalar | true |

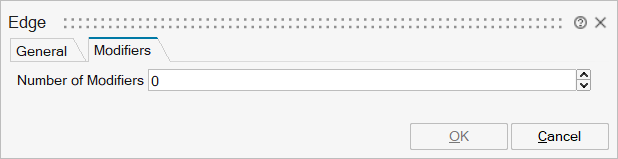

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | ||
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
u | implicit | Connector of Boolean input signal | input | 1 |
y | implicit | Connector of Boolean output signal | output | 1 |
