IdealReliefResistor
Library
HydraulicsByFluidon/Components/Valves/Base
Description
The component IdealReliefResistor is a model of a flow resistance that behaves as an orifice.
Flow is adjusted via the input signal with nominal flow (as given by Nominal volume flow at Nominal pressure difference) corresponding to an input value of 1 (relative adjustment).
It is parameterized by the parameters Nominal volume flow at Nominal pressure difference, measured with a fluid with Reference density.Orifice

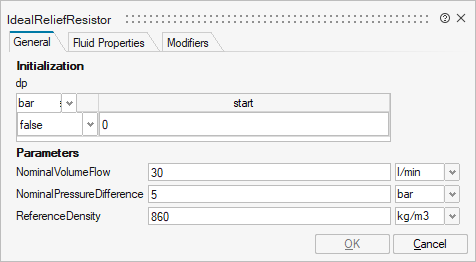

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_dp | dp | dp | Structure | |
mo_dp/fixed | fixed | Cell of scalars | true | |
mo_dp/start | start | Cell of scalars | ||
mo_dpOffset | dpOffset | dpOffset | Structure | |
mo_dpOffset/fixed | fixed | Cell of scalars | true | |
mo_dpOffset/start | start | Cell of scalars | ||
mo_pScaling | pScaling | pScaling | Structure | |
mo_pScaling/fixed | fixed | Cell of scalars | true | |
mo_pScaling/start | start | Cell of scalars | ||
mo_rho | rho | rho | Structure | |
mo_rho/fixed | fixed | Cell of scalars | true | |
mo_rho/start | start | Cell of scalars | ||
mo_InputMax | InputMax | Scalar | ||
mo_NominalVolumeFlow | NominalVolumeFlow | Nominal volume flow | Scalar | |
mo_NominalPressureDifference | NominalPressureDifference | Nominal pressure difference | Scalar | |
mo_ReferenceDensity | ReferenceDensity | Reference density | Scalar | |
mo_coefficient | coefficient | Scalar | ||
mo_ZeroCoefficient | ZeroCoefficient | Scalar | ||
mo_ZeroVolumeFlow | ZeroVolumeFlow | Volume flow due to leakage | Scalar | |
mo_ZeroFlowPressureDifference | ZeroFlowPressureDifference | Pressure difference for leakage flow | Scalar | |
mo_rhoZero | rhoZero | Scalar | ||
mo_rhoCoeff | rhoCoeff | Scalar |

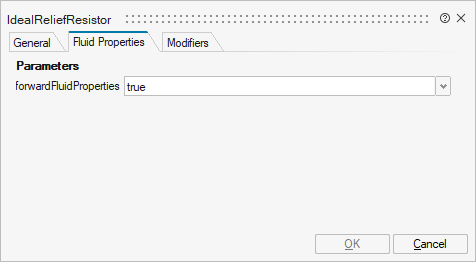

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_forwardFluidProperties | forwardFluidProperties | Forward fluid properties between ports | Scalar | true |

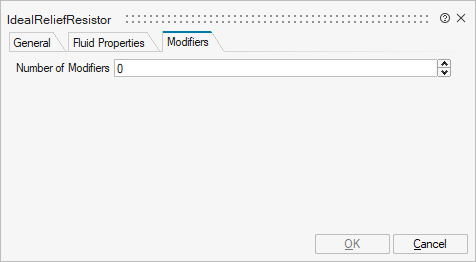

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'volumeFlowA' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
fluidPortA | implicit | Hydraulic port A | input | 1 |
fluidPortB | implicit | Hydraulic port B | input | 2 |
u | implicit | input | 3 |
