MatrixExponential

This block outputs the matrix exponential of a square matrix input by the padeapos;s approximants. The output is a square matrix with the same size as the input.

    MatrixExponential

Library

Activate/MatrixOperations

Description

The MatrixExponential block computes the matrix exponential of a square matrix using the Pade's approximants. The output is a square matrix with the same size as the input.

Parameters

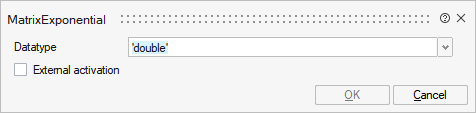

MatrixExponential_0

NameLabelDescriptionData TypeValid Values

typ

Datatype

It indicates the input data type. It can be: double, complex or inherit.

String

'double'
'complex'
'inherit'

externalActivation

External activation

Specifies whether the block receives an external activation or inherits its activation through its regular input ports. When External Activation is selected, an additional activation port is added to the block. By default, external activation is not selected.

Number

0
1

Ports

NameTypeDescriptionIO TypeNumber

Port 1

explicit

output

1

Port 2

explicit

input

1

Port 3

activation

input

externalActivation

Advanced Properties

NameValueDescription

always active

no

direct-feedthrough

yes

zero-crossing

no

mode

no

continuous-time state

no

discrete-time state

no
