RelationalOp
This block compares two input signals defined by the relational operator (parameter).
Library
Activate/LogicalOperations
Description
The RelationalOp block compares two input signals defined by the relational operator specified by block parameter. The comparision is made elementwise. The elements of the output matrix signal are either TRUE or False, represented by 1 and 0, respectively.
Supported relational operations are : "==", "~=", "<", "<=", ">" and ">=".
if the operator is "==", the result is TRUE if the two inputs are equal.
if the operator is "~=", the result is TRUE if the two inputs are not equal.
if the operator is "<", the result is TRUE if the first input is less than the second input.
if the operator is "<=", the result is TRUE if the first input is less or equal than the second input.
if the operator is ">", the result is TRUE if the first input is greater than the second input.
if the operator is ">=", the result is TRUE if the first input is greater or equal than the second input.

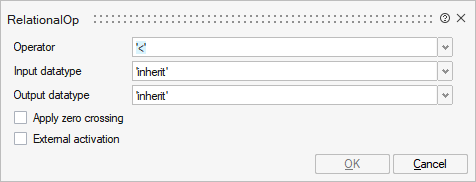

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
rule | Operator | Relational operations supported by the RelationalOp block are : "==", "~=", "<", "<=", ">" and ">=". | String | '==' |
typei | Input datatype | Defines the datatype of the inputs. | String | 'double' |
typeo | Output datatype | Defines the datatype of the output. | String | 'double' |
zcr | Apply zero crossing | Parameter to activate zero-crossing detection. | Scalar | 0 |
externalActivation | External activation | This parameter defines if the block receives an external activation or inherits. When External Activation is used, an activation port is added to the block. | Number | 0 |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | input | 1 | |
Port 2 | explicit | input | 2 | |
Port 3 | explicit | output | 1 | |
Port 4 | activation | input | externalActivation |
Advanced Properties
| Name | Value | Description |
|---|---|---|
always active | no | |
direct-feedthrough | yes | |
zero crossing | no | |
mode | no | |
continuous-time state | no | |
discrete-time state | no |
