Scheduling Tasks



On the Scheduler tab of the System Settings page, Panopticon Real Time allows scheduling of tasks.

A new scheduled task is added in the list with the properties.

Schedule Property	Description
1	Run Task Manually run scheduler task.
2	Upload Task Upload scheduler task.
3	New Task Create a new scheduler task.
4	Delete Task Delete a scheduler task.
5	Download Task Download a scheduler task.
6	Task Properties The task properties include: Name of the task Activated status Type of the scheduled task Trigger type: Period or CRON Last user who made an update Date/Time when the task was created Date/Time when the task was last ran Last run result: Success or Failed For failed results, you can hover on the tooltip to view the error. NOTE: The result is not displayed for Extract Data scheduler type.

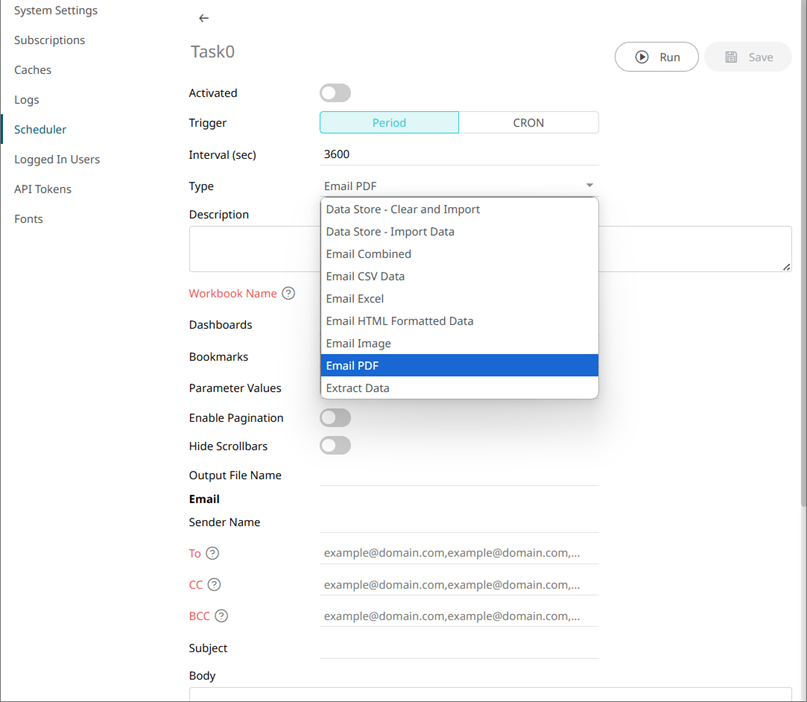

To create a new task, click  . The New Task pane displays that allows you to define the following tasks:

• Clearing and Importing Data Table to Data Store
• Importing Data Table to Data Store
• Sending of Combined files via Email
• Sending of a CSV Data via Email
• Sending of an MS Excel file via Email
• Sending of an HTML Formatted Data via Email
• Sending of an Image file via Email
• Sending of a PDF file via Email
• Extracting Data



NOTE:

• To allow scheduling of email send outs, Panopticon Real Time must be configured with valid email server information in the Panopticon.properties file located in the AppData folder (e.g., /etc/panopticon/appdata).

  See Panopticon Real Time Configurations for Email Send Outs and Alerts for instructions.

• If any data load fails, such as when the data source is offline, the PDF/Image generation fails as well and an email will not be sent.
