Defining the Format in Data Sources

You can select the format to use in the connector for Azure, Google Cloud, Microsoft OneDrive, Rapidminer - Data Catalog, S3, and Web Data data sources.

Select the Data Type:

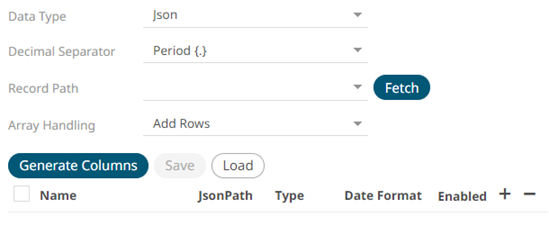

- JSON
  If JSON is selected, enter the Record Path which allows the identification of multiple records within the JSON document (e.g., myroot.items.item) and select the Array Handling setting.

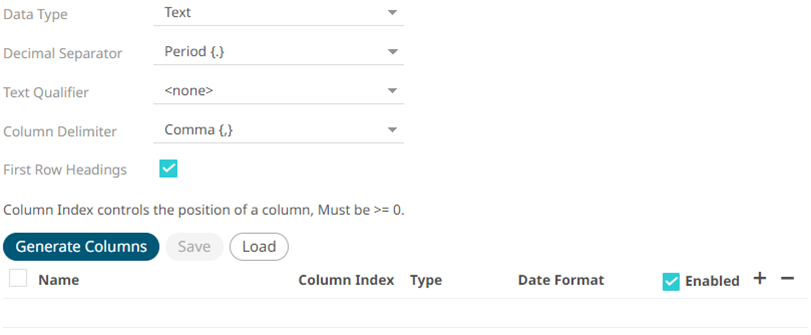

- Text
  If Text is selected, confirm the Decimal Separator, Text Qualifier, Column Delimiter, and if the first row of the message includes column headings.

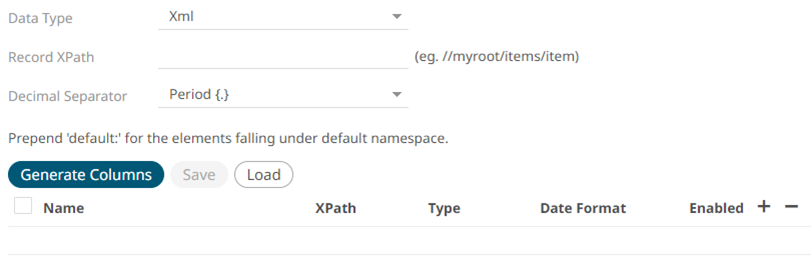

- XML
  If XML is selected, enter the Record XPath which allows the identification of multiple records within the XML document (e.g., //myroot/items/item).

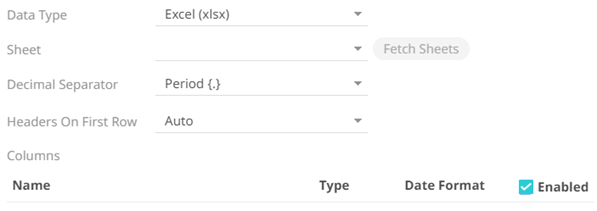

- Excel (xlsx) or Excel (xls)
  For Excel file type, select the required sheet and adjust the headers on first row, if needed.

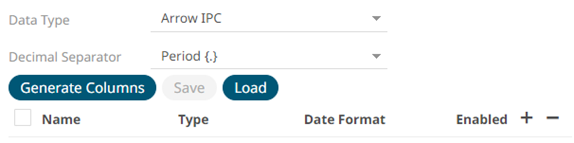

- Arrow IPC
- SVG

  NOTE:
  - The Decimal Separator setting is not available on the Web Data connector.
  - In the SVG parser, columns listing is not displayed.
- RMHDF5
  This data type is only available in the RapidMiner – Data Catalog connector.

Define or set the columns that represent the sections of the file.

Property	Description
Name	The column name of the source schema.
JsonPath/Column Index/XPath	The JsonPath/Column Index/XPath of the source schema.
Type	The data type of the column. Can be a Text, Numeric, or Time
Date Format	The format when the data type is Time.
Enabled	Determines whether the message field should be processed.

NOTE: To parse and format times with higher than millisecond precision, the format string needs to end with a period followed by sequence of uppercase S. There can be no additional characters following them. For example: yyyy-MM-dd HH:mm:ss.SSSSSS.

To delete a column, select or for all the column entries, select the topmost , then click .
