Maps

Positioning and objective

The aim of the test “Characterization - Model - Motor - Maps” is to give 2D maps in Jd-Jq plane for characterizing the 3-Phase reluctance synchronous machines.

These maps allow predicting the behavior of the electrical rotating machine at a system level.

In this test engineers will find a system integrator and / or control-command tool adapted to their needs and able to provide accurate maps ready to be used in system simulation software like Activate.

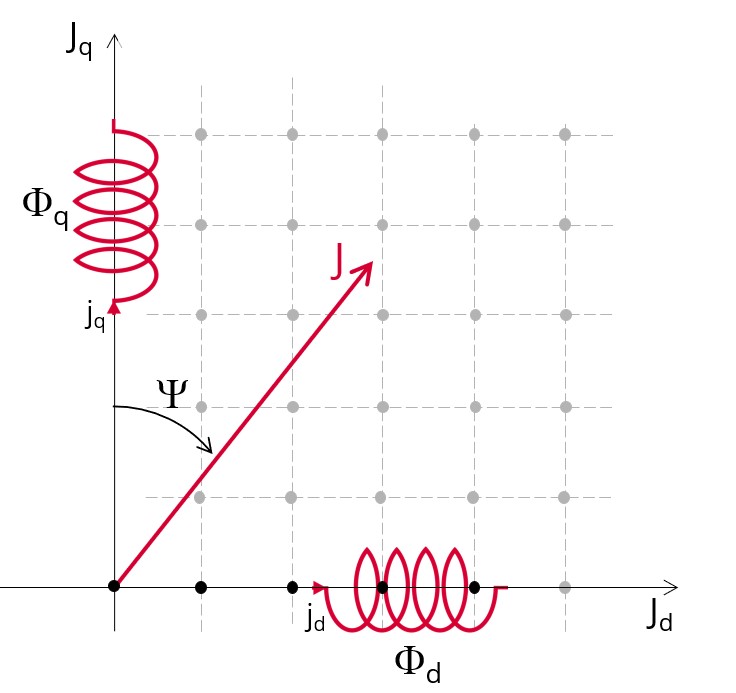

Figure 1. “Characterization - Model - Motor - Maps” illustration

Performance of the machine in steady state can be deduced from the results obtained in this test in association with the drive and control mode to be considered.

The following table helps to classify the test:

Table 1. Positioning of the test “Characterization - Model - Motor - Maps”
Family	Characterization
Package	Model
Convention	Motor
Test	Maps

Subsections

Inputs

For more details, please refer to Inputs.

Thermal

For more details, please refer to Thermal.

Electronics

For more details, please refer to Electronics.

Mechanics

For more details, please refer to Mechanics.
