SSFR

Positioning and objective

The aim of the test “Characterization – Model – Motor – SSFR” is to characterize all the parameters of the equivalent scheme by performing a frequency analysis.

Then, the resulting equivalent scheme can be evaluated by simulating the starting of the considered induction machine. The speed, torque and absorbed current versus time are computed and displayed.

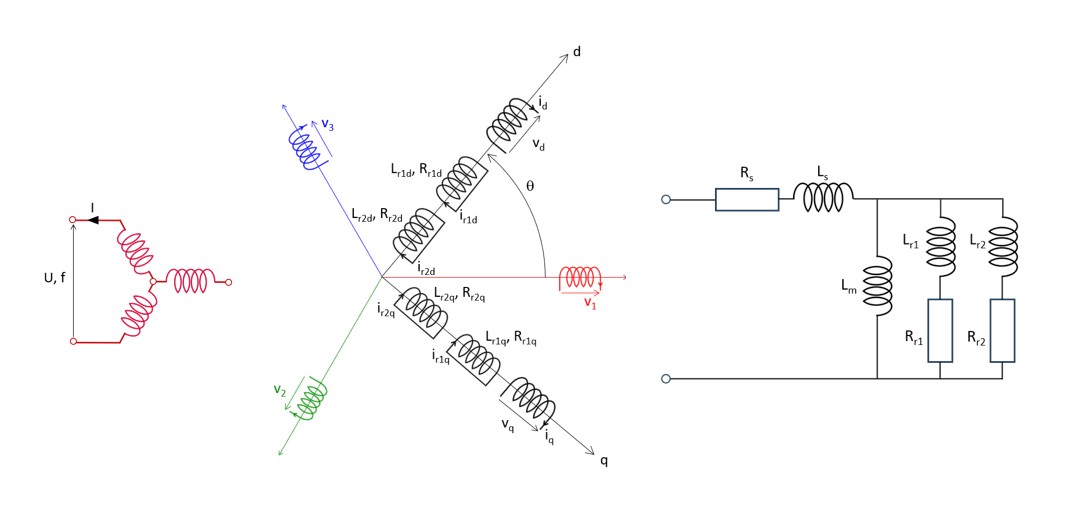

Figure 1. “Characterization – Model – Motor – SSFR” – Characterization of all the equivalent scheme parameters

These results are based on the magnitude and the phase of the operational inductance transfer function which are computed with Finite Element software Altair Flux 2D.

The following table helps to classify the test “Characterization – Model – Motor – SSFR”.

Table 1. Positioning of the test “Characterization – Model – Motor – SSFR”
Family	Characterization
Package	Model
Convention	Motor
Test	SSFR
