Designate Filling System

Select the runners through which the molten metal flows to enter the mold cavity.

Click the Casting tab.
Click the Runner System icon.
Click Runner.
Click one or more parts to select the runners.

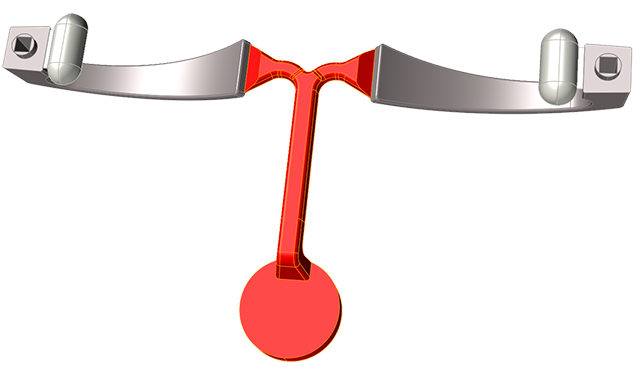

The selected parts are displayed in red.
Right-click and mouse through the check mark to exit, or double-right-click.
