Inputs - Outputs


Assign BAR material to the rotor

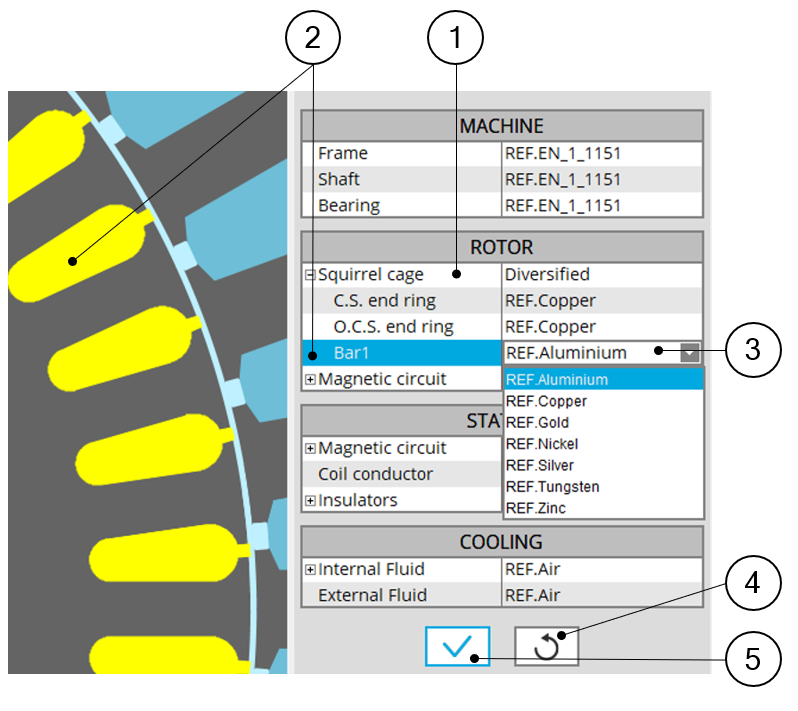

1	Expand the section dedicated to squirrel cage. Several bar materials can be assigned to the squirrel cage. Here the cage can be composed of three materials, for the bar, and each end ring. For specific bar topology (for example double cage), each cage can have its own material.
2	By selecting a region name (Squirrel cage for example) the corresponding face(s) region(s) is (are) highlighted.
3	Expand the material list to choose a conductor material which gets assigned to the selected squirrel cage
4	Button to restore default materials. Default materials are those defined as favorite materials in Material manager. See “Materials” application for more information.
5	Button to validate assignment of materials. Pressing the Enter key twice applies inputs too.
