Design
1. Choose a slot topology
Clicking on the "Slot shape" button opens a dialog box, allowing access to the slot libraries.
It allows to visualize, compare, choose and import another slot topology to modify the current stator design.
 |
|
| How to choose another slot topology? | |
| 1 | Visualization of reference libraries i.e. the libraries of slot
topologies provided with the software . Select them to view their content and choose a slot among them. See “Part Library” application for more information. |
| 2 | Visualization of user libraries. The default user library is “User_OuterSlot” See “Part Library” application for more information. |
| 3 | Area where the selected slot is displayed (static picture) – Topology + dimension labels. |
| 4 | Button to visualize the list of documents attached to the part. See additional information below. |
| 5 | Button to display thumbnails as a slide show. |
| 6 | Button to display thumbnails as a list. |
| 7 | Button to display thumbnails as a matrix view of pictures. |
| 8 | Area to visualize all the topologies of slots from the selected library. |
| 9 | Button to close the dialog box and come back to Motor Factory – DESIGN – Slot area. |
| 10 | Button to choose and import the selected slot to modify the current stator design. |

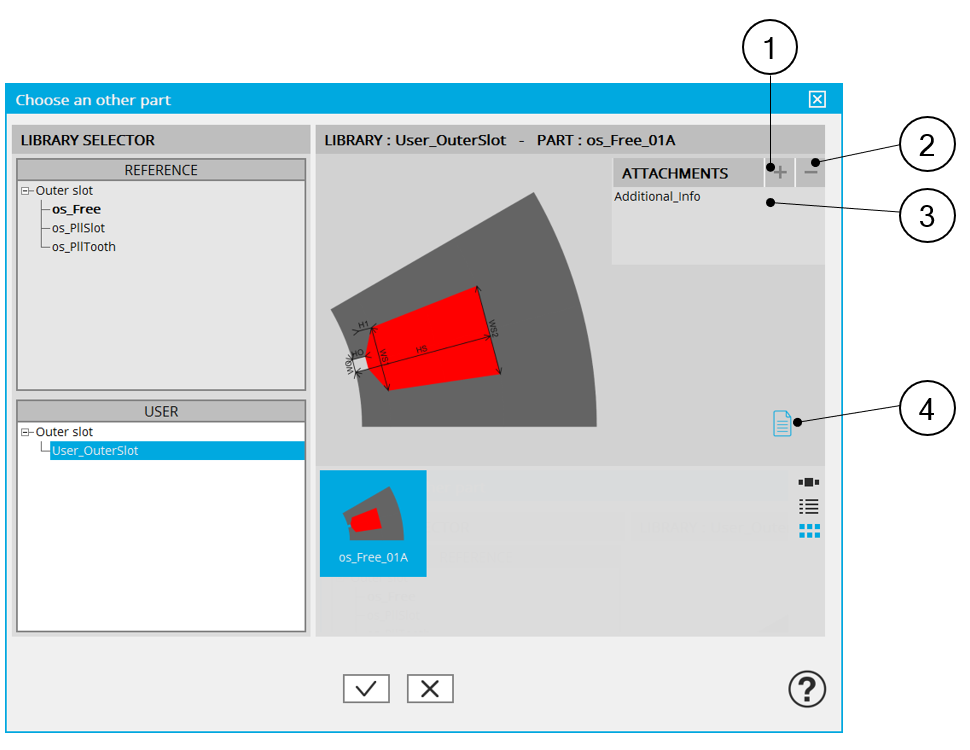

2. Attached documents – Additional information
 |
1 | Attached document list after having clicked on button to display it (4). |
| 2 | “+” or “-“ non-active buttons from “Motor Factory”. See “Part Library” application for more information. |
|
| 3 | List of attached documents (if present). A double click on the selected document opens it. Documents can be added only from Part Library application. See “Part Library” application for more information. |
|
| 4 | Button to show or hide the attached document list. | |
| Visualization of attached documents | ||
