Design
1. Choose a bar topology
Clicking on the "Bar shape" button opens a dialog box, allowing to access the bar libraries.
It allows visualizing, comparing, choosing and importing another bar topology to modify the current rotor design.
 |
|
| How to choose another bar topology? | |
| 1 |
Visualization of reference libraries i.e. the libraries of bar topologies provided with the software. Select them to view their content and choose the bar among their content. See “Part Library” application for more information. |
| 2 |
Visualization of user libraries. The default user library is “User_InnerBar”. See “Part Library” application for more information. |
| 3 | Area where the selected bar is displayed (static picture) – Topology + dimension labels. |
| 4 | Button to visualize the list of documents attached to the part. See additional information below. |
| 5 | Button to display thumbnails as a slide show. |
| 6 | Button to display thumbnails as a list. |
| 7 | Button to display thumbnails as a matrix view of pictures. |
| 8 | Area to visualize all the topologies of bars from the selected library (ref. 1). |
| 9 | Button to close the dialog box and come back to Motor Factory – DESIGN – Bar area. |
| 10 | Button to choose and import the selected bar to modify the current rotor design. |

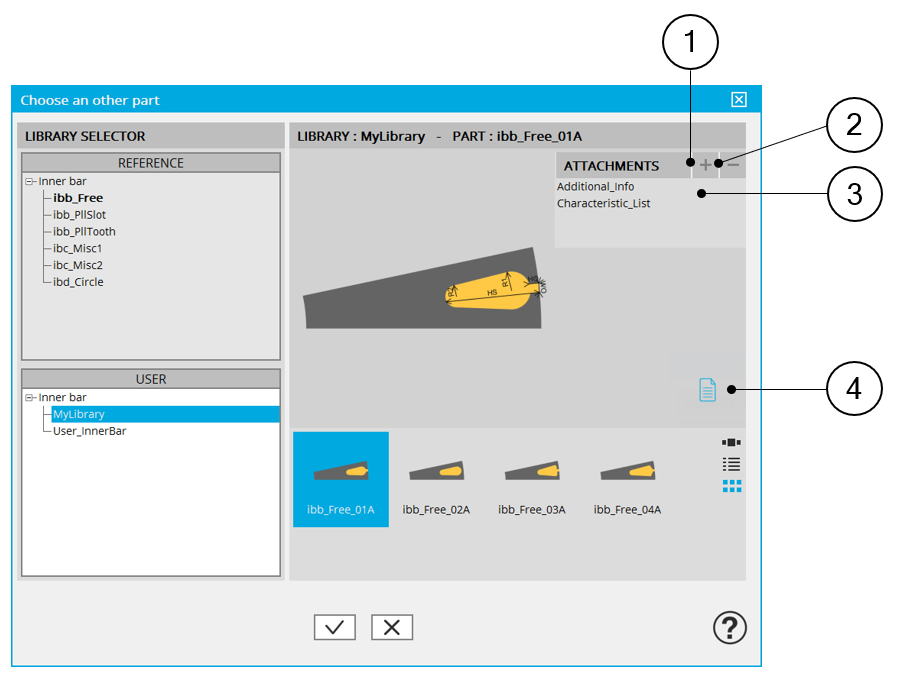

2. Attached documents – Additional information
 |
1 | List of attached documents after having clicked on button to display it (4). |
| 2 |
“+” or “-“ non-active buttons from “Motor Factory” See “Part Library” application for more information. |
|
| 3 |
List of attached documents (if it exists) A double click on the selected document opens it. Documents can be added only from Part Library application. See “Part Library” application for more information. |
|
| 4 | Button to show or to hide the attached document list. | |
| Visualization of attached documents | ||
