Inputs
Method to define the airgap

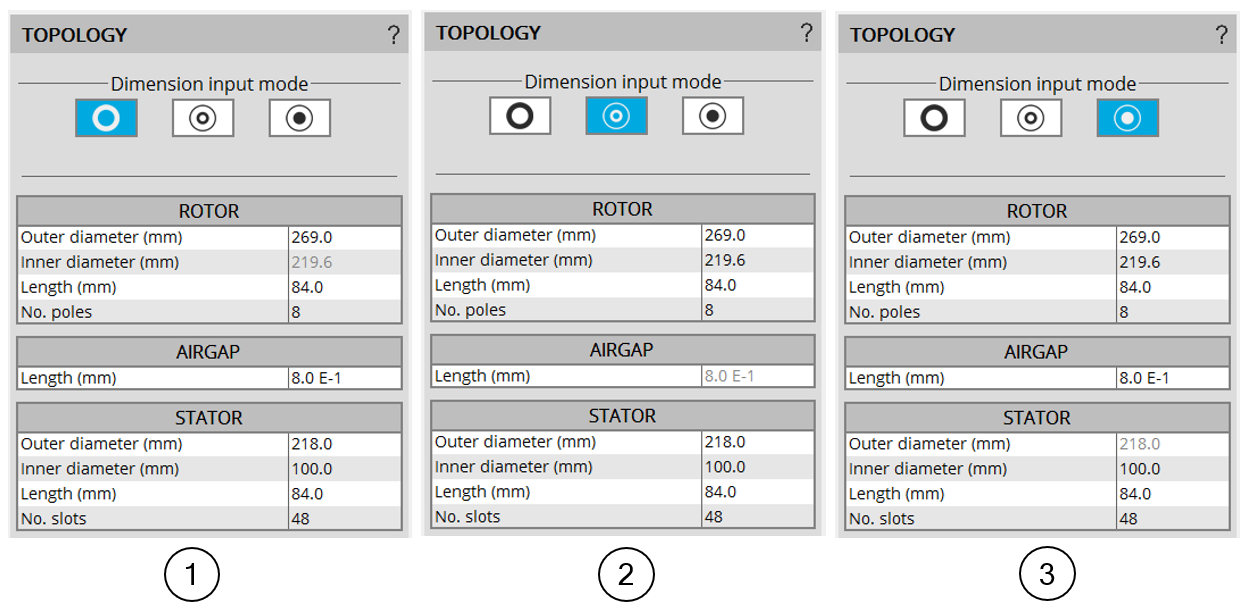

In the topology sub area, three ways are possible to define the structural data of the machine, with the diameters and the airgap. They are illustrated below.
 |
|
| Method to define the diameters of machine and the airgap Example for a Synchronous Machine with Permanent Magnets and Outer Rotor | |
| 1 |
User defines the inner diameter of the stator and the airgap. The outer diameter of the rotor is automatically deduced (automatically computed value is displayed in grey color). |
| 2 |
User defines the inner diameter of the stator and the outer diameter of the rotor. The airgap is automatically deduced (automatically computed value is displayed in grey color). |
| 3 |
User defines the outer diameter of the rotor and the airgap. The inner diameter of the stator is automatically deduced (automatically computed value is displayed in grey color). |
