POLARIZATION
Polarization - Overview
 |
|

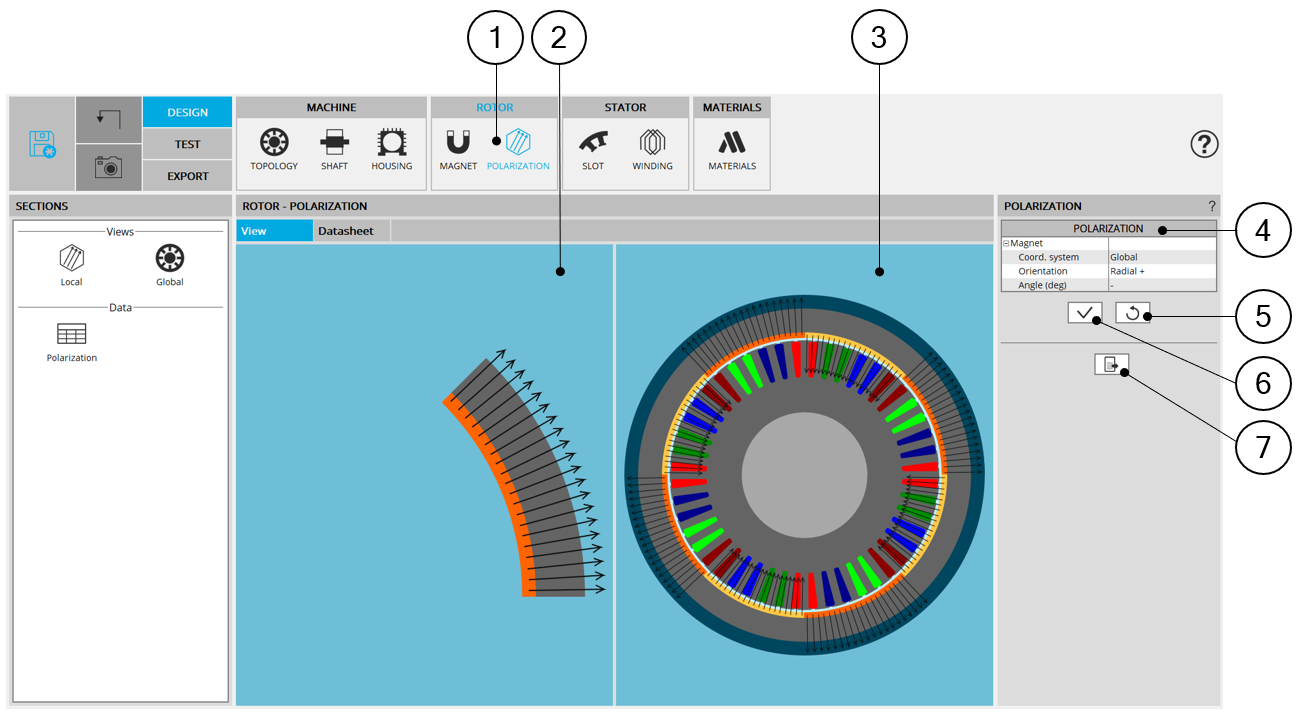

| POLARIZATION design area | |
| 1 | Selection of the ROTOR subset: POLARIZATION panel (Click on the icon POLARIZATION) |
| 2 | Visualization of the polarization on one pole. |
| 3 | Visualization of the polarization on the whole machine. |
| 4 | Area to choose the polarization strategy. Five types of orientation and two coordinate systems and angle are available. See additional information below. |
| 5 |
Button to restore default input values. Default polarization is defined in Part Factory application via Excel file. See “Part Factory” application for more information. |
| 6 | Button to Apply inputs. Pressing the enter key twice applies inputs too. |
| 7 | Icon to export polarization data into *.txt or *.xls files. |
