Brush
Model considering voltage drop of carbon brushes
Library
Modelica/Electrical/Machines/Losses/DCMachines
Description
Model of voltage drop and losses of carbon brushes. For currents between -ILinear and ILinear the voltage drop shows a linear behavior as depicted in Fig. 1. For positive currents greater or equal than ILinear the voltage drop equals V. For negative currents less or equal than -ILinear the voltage drop equals -V.
 |

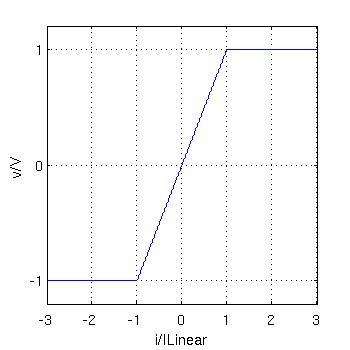

| Fig. 1: Model of voltage drop of carbon brushes |
Note
The voltage drop v is the total voltage drop of all series connected brushes.
See also
If it is desired to neglect brush losses, set brushParameters.V = 0 (this is the default).
Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

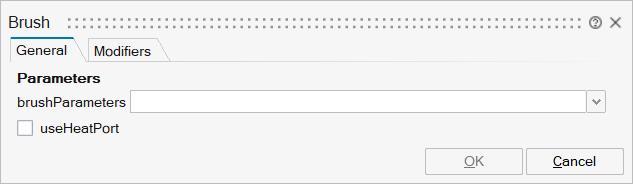

mo_brushParameters | brushParameters | Brush loss parameters | FromModelica('Modelica.Electrical.Machines.Losses.BrushParameters') | |
mo_useHeatPort | useHeatPort | = true, if heatPort is enabled | Number | 0 |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|

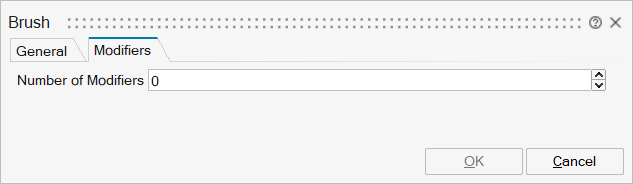

mo__nmodifiers | Number of Modifiers | Specifies the number of modifiers | Number | |
mo__modifiers | Modifiers | Add new modifier | Structure | |
mo__modifiers/varname | Variable name | Cell of strings | 'v' | |
mo__modifiers/attribute | Attribute | Cell of strings | 'start' | |
mo__modifiers/value | Value |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
p | implicit | Positive electrical pin | input | 1 |
n | implicit | Negative electrical pin | output | 1 |
Port 3 | implicit | Optional port to which dissipated losses are transported in form of heat | input | mo_useHeatPort |
